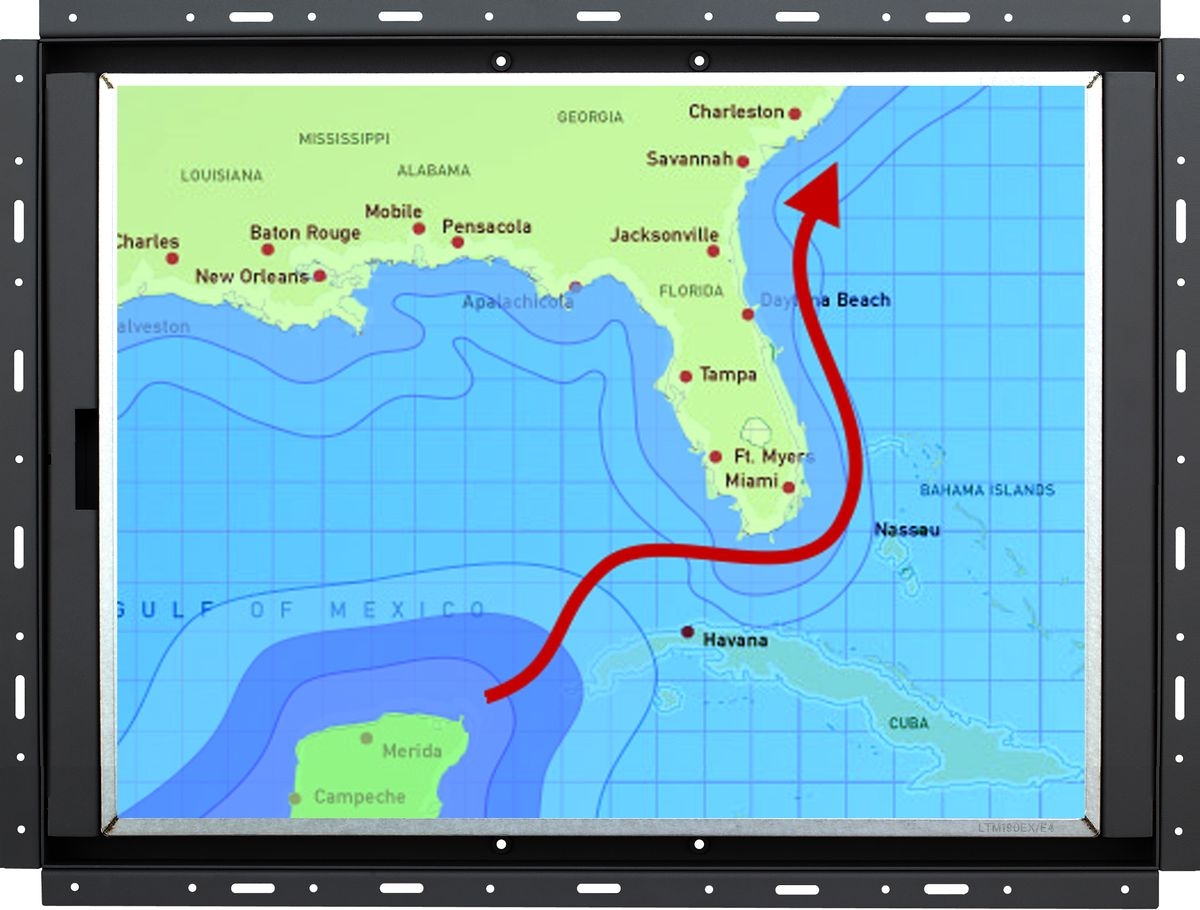

19" Rugged LCD Universal Open Frame LCD Panel (Part# LCD-OP19)


  • VGA & DVI-D Input - Optional BNC & S-Video + Audio + HDMI

  • 3MM Protective Glass - Optional NEMA4/IP65 LED Display Panel

  • Optional - Resistive or 10 Point MultTouch Capacitive Touchscreen

  • Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 12VDC / 24VDC / 48VDC / 125VDC



Regular Price: $699.00

Special Price $567.00

Description

Details

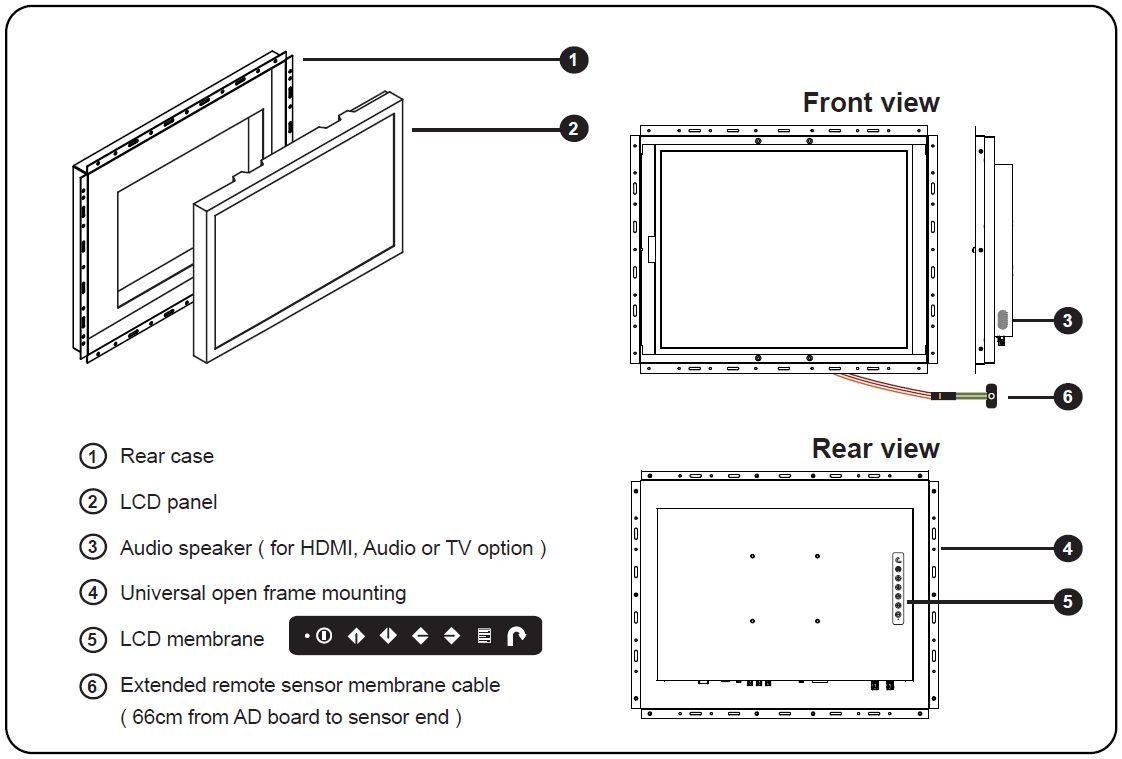

19" Open Frame Industrial LCD Features
Industrial LCD Panel Options -
  • Video:         VGA + HDMI + BNC & S-Video + Audio
  • Broadcast:          3G / HD / SD-SDI Broadcast-grade input
  • Multi-Display:    Multi-display control
  • Touchscreen:       Resistive or Capacitive
  • Tuner:                TV - PAL or NTSC Remote Controller
17" Industrial LCD Panel Inputs

Reviews

Write Your Own Review

You're reviewing: 19" Rugged LCD Universal Open Frame LCD Panel (Part# LCD-OP19)

Tags

Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Product Specification

LCD Panel Video Specs
Video input VGA + DVI-D single link
Video Option
 Digital / Analog  HDMI / SDI / Composite

HDMI 1.2
3G / HD / SD-SDI Broadcast Grade Input
S-Video (4-pin) + Composite (BNC)
NTSC & PAL

LCD Panel
Panel Size (diagonal) 19"
Native resolution 1280 x 1024
Brightness(cd/m²) 250
Contrast ratio (typ.) 1000:1
Max Color 16.7 M
Contrast angle(L/R/U/D) 85/85/80/80
Responsive time(ms) 5
Dot pitch (mm) 0.264
Display area (mm) 376.32H x 301.06V
Surface treatment Haze 25%,. Hard-coating
Surface hardness 3H
Backlight type LED
MTBF(hrs) 30,000
Power
Input Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption
(console / K/M)
Screen on Max. 35W
Power saving mode Max. 4W
Power button on Max. 1W

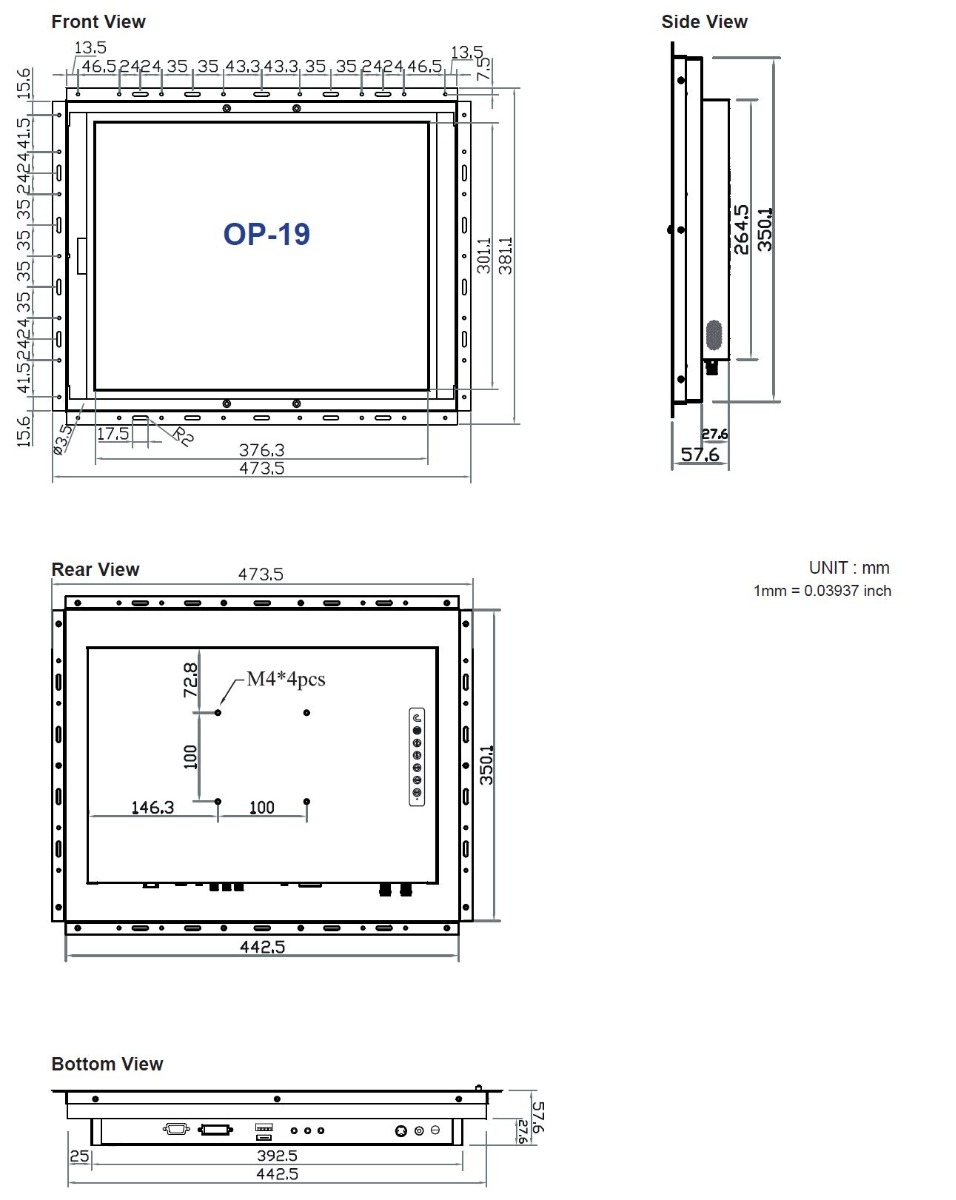

Physical LCD Frame
 Product
 (W x D X H)
Millimeters 473.5 x 57.6 x 381.1mm
Inches 18.6 X 2.3 X 15 inch
 Packing
 (W x D X H)
Millimeters
Inches
651 x 124 x 597mm
25.6 x 4.9 x 23.5 inch
Net
weight
KGs 5.7 kg
LBS  12.5 lb
Gross
weight
KGs 8.5 kg
LBS 218.7 lb
Environment
Operating temp. 0 to 55°C degree
Strorage temp -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating alttiude 16,000 ft
Non-operating attude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz .5G RMS randon vibration
Compliance
EMC FCC & CE certifiled
Safety CE/ LVD certified
Environment RoHS2 & REACH compliant
