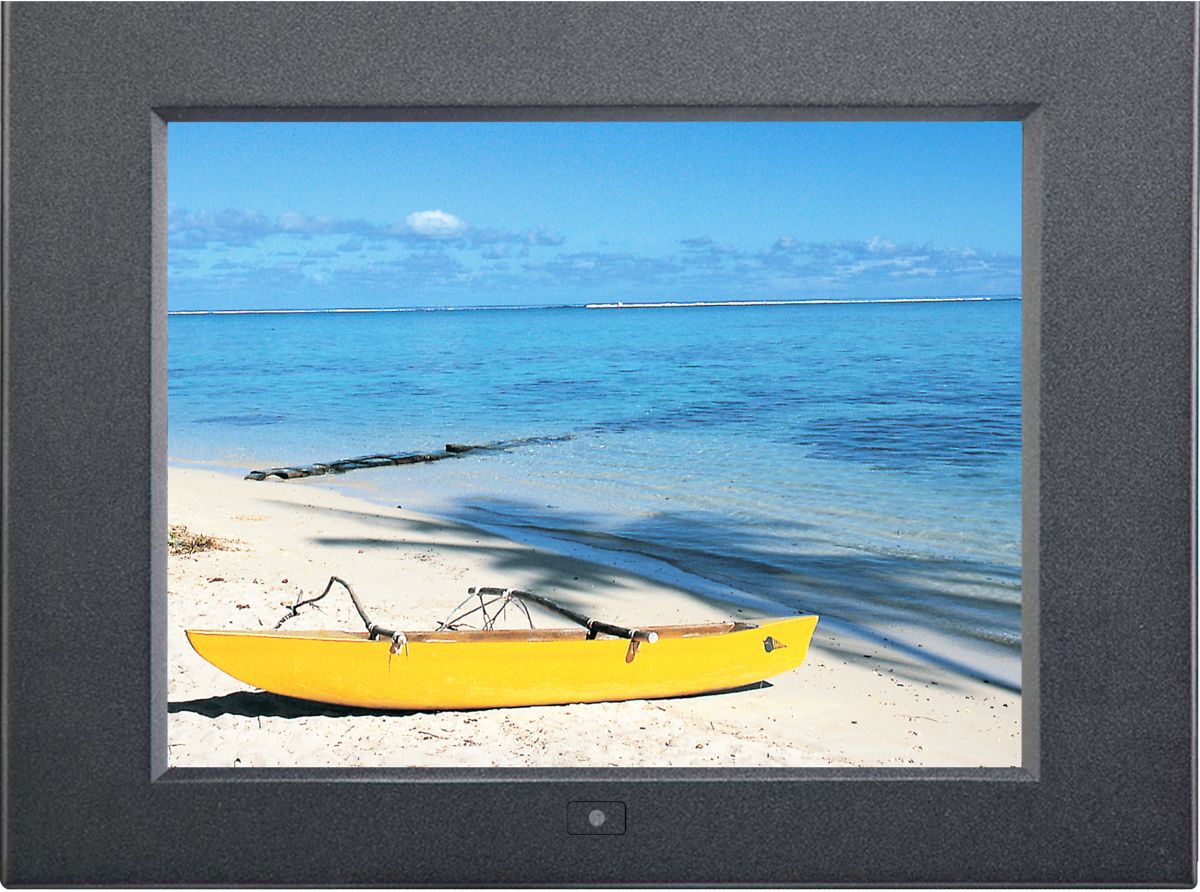

12.1" Rugged LCD, 800 X 600, Aluminum Frame - Industrial LCD Panel (Part#LCD-AP12)
Special Price
$774.00
Regular Price
$967.50
VGA Input - Optional BNC & S-Video, + Audio + Remote Controller, DVI, HDMI
3MM Protective Glass - Optional NEMA4/IP65 LED Display Panel
Optional - Resistive or Capacitive Touchscreen
Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 12VDC / 24VDC / 48VDC / 125VDC
More Information
Product Specification |
Product Specification
LCD Panel Video Specs |
Video input |
VGA |
Video Option |
Analog / Digital |
Composite / DVI / HDMI |
S-Video (4-pin) + Composite (BNC) + Audio + Remote Controller - HTSC & PAL DVI-D Single Link, HDMI 1.3 / HDCP 1.3
|
LCD Panel |
Panel Size (diagonal) |
12.1" |
Native resolution |
800 x 600 |
Brightness(cd/m²) |
450 |
Contrast ratio (typ.) |
700 :1 |
Max Color |
262 K |
Contrast angle(L/R/U/D) |
80/80/65/75 |
Responsive time(ms) |
35 |
Dot pitch (mm) |
0.3075 |
Display area (mm) |
246H x 184.5V |
Surface treatment |
Anti-glare |
Surface hardness |
3H |
Backlight type |
LED |
MTBF(hrs) |
50,000 |
Power |
Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption (console / K/M) |
Screen on |
Max. 14W |
Power saving mode |
Max. 4W |
Power button on |
Max. 1W |

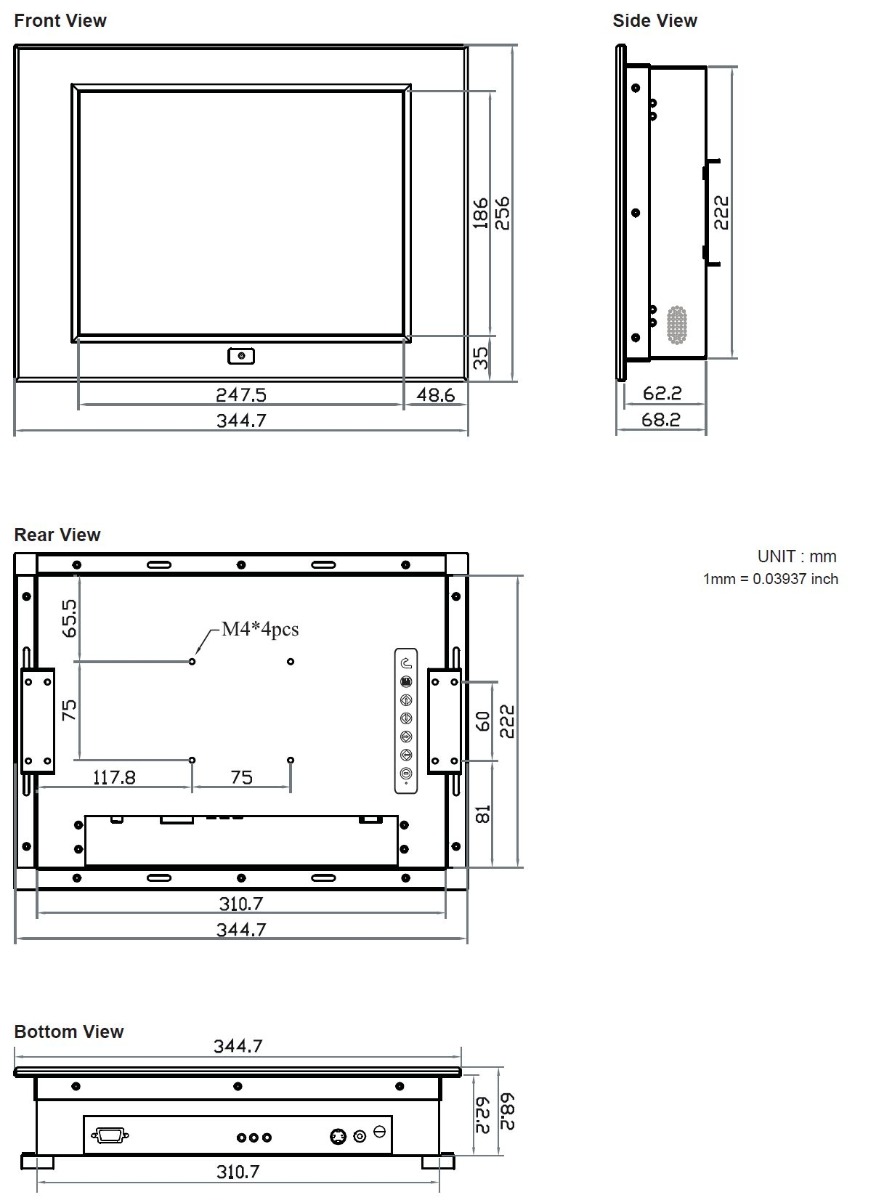

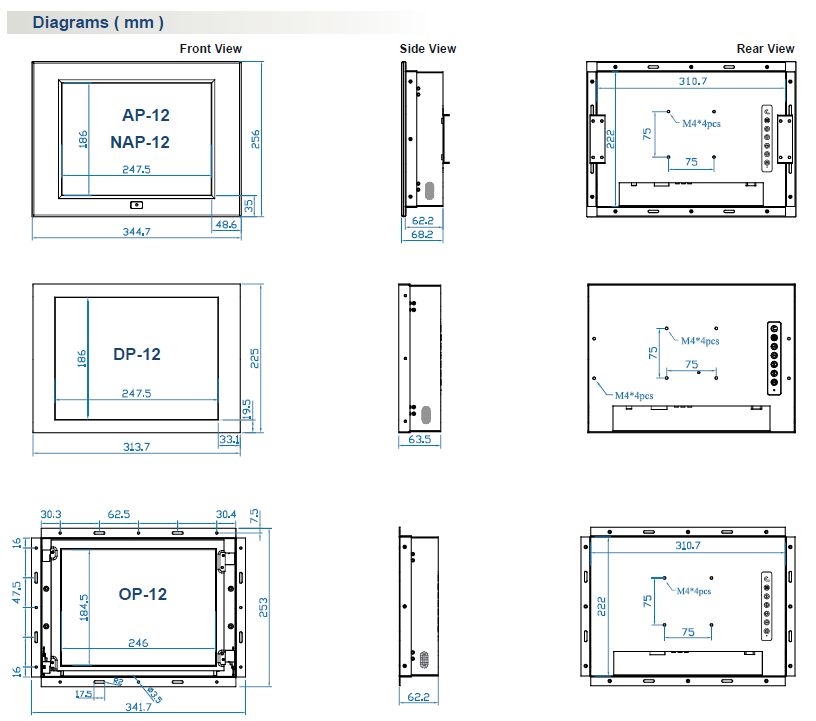

Physical LCD Frame |
Product (W x D X H) |
Millimeters |
344.7 x 68.2 x 256mm |
Inches |
13.6 X 2.7 X 10.1 inch |
Packing (W x D X H) |
Millimeters Inches |
515 x 117 x 429mm 20.3 x 4.6 x 16.9 inch |
Net weight |
KGs |
3.5 kg |
LBS |
7.7 lb |
Gross weight |
KGs |
5.5 kg |
LBS |
12.1 lb |
Environment |
Operating temp. |
0 to 55°C degree |
Strorage temp |
-20 to 60°C degree |
Operating humidity |
20~90%, non-condensing |
Storage humidity |
5 ~90%, non-condensing |
Operating alttiude |
16,000 ft |
Non-operating attude |
40,000 ft |
Shock |
10G acceleration (11ms duration) |
Vibration |
10~300Hz .5G RMS randon vibration |
Compliance |
EMC |
FCC & CE certifiled |
Safety |
CE/ LVD certified |
Environment |
RoHS2 & REACH compliant |
|

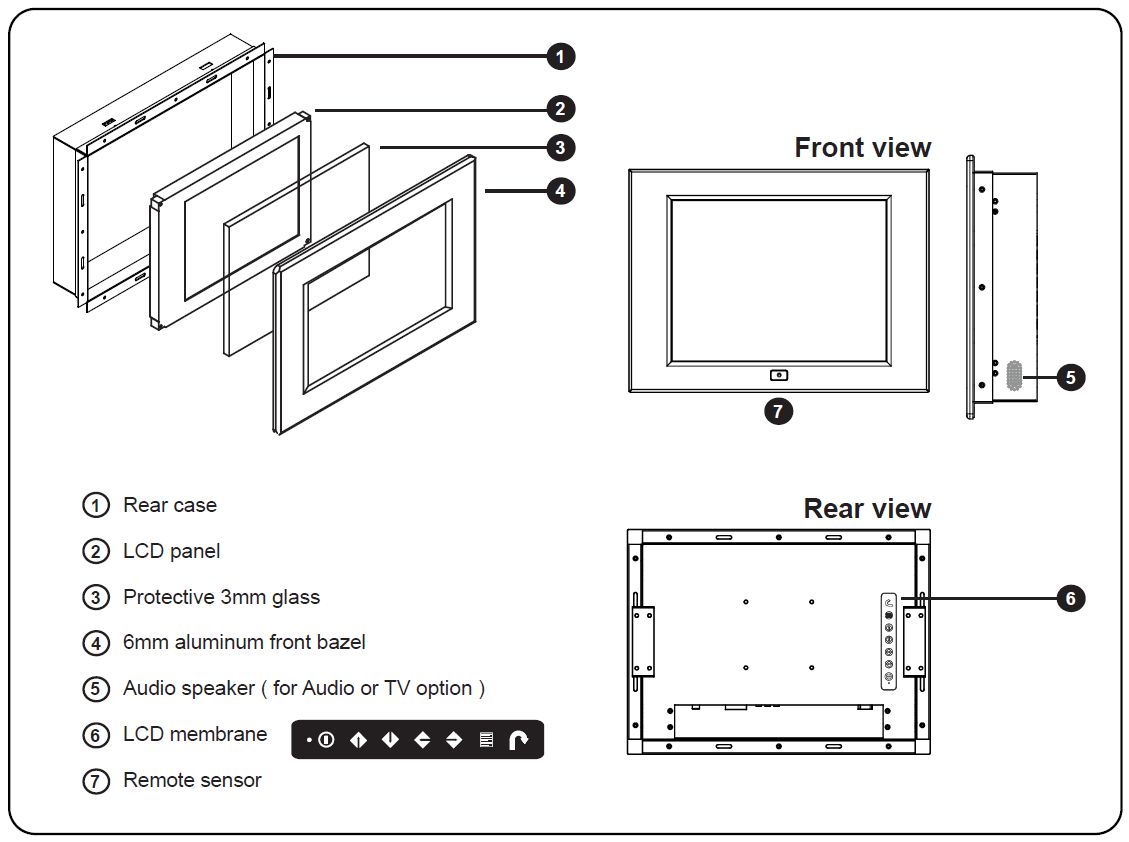

12.1" Industrial LCD Features

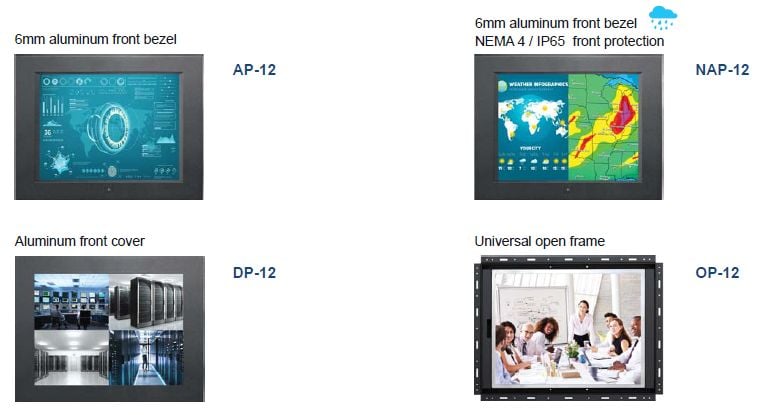

Industrial LCD Panel Options -
- Video: BNC & S-Video
- Audio: Add integrated speakers
- Touchscreen: Resistive or Capacitive
- Tuner: TV - PAL or NTSC Remote Controller
