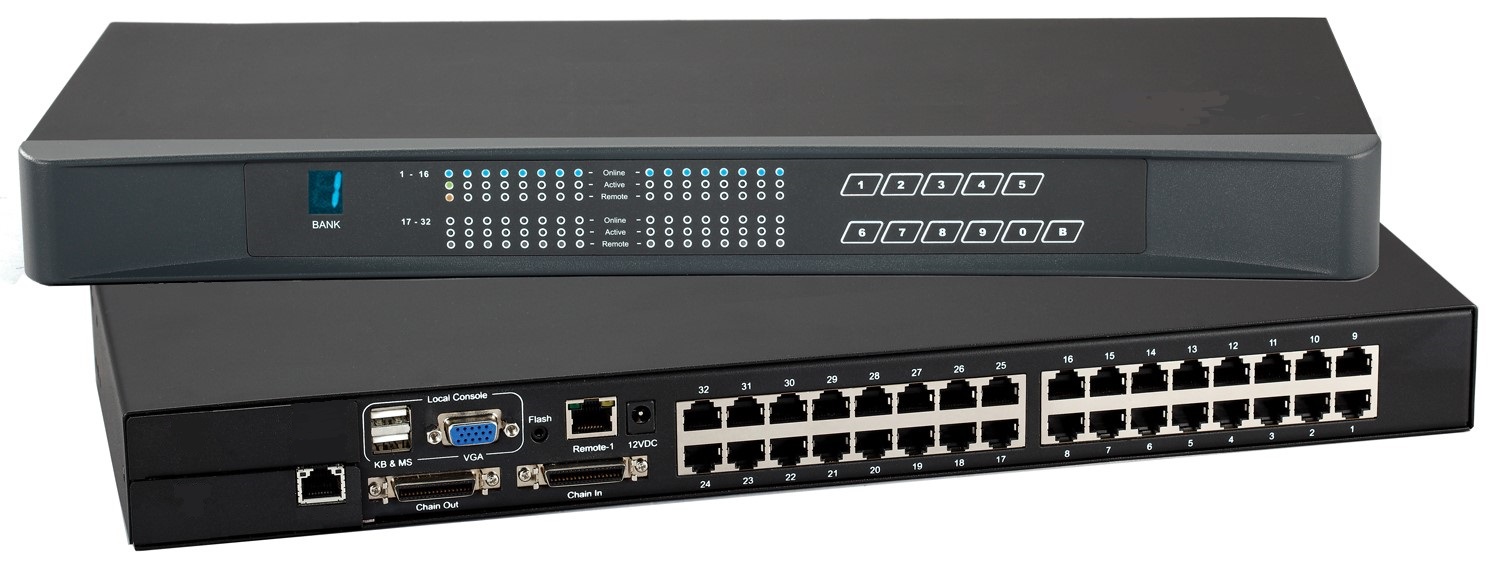

Cat5 3 Console 32 Port KVM Switch (Part#Cat5M-3203)

1 Local Console, 3 Remote Cat5/Cat6 Consoles - Supports up to 1920 X 1200 Resolution




Regular Price: $1,695.00

Special Price $1,471.00

Description

Details

32 Port 3 Console Cat5 KVM Switch Features -
  • Console: 1 Local Console, 2 Remote Cat5 Consoles
  • Distance: Cat5 / Cat6 Cable up to 130ft between servers and KVM Ports
  • Dongle: Supports VGA, DVI, HDMI, and Display Port Dongles
  • Compatibility: PCs, SUN, Mac G3 / G4 Mac / iMac- Windows, Unix, Linux
  • Resolution: 1600 X 1200 - Supports SUN 1152 X 900
  • Security:SSL v3, RSA, AES, HTTP / HTTPs / CSR
  • Power:Auto Sensing - 100 to 240VAC, 50 / 60Hz
  • KVM Navigation:Front Buttons or OSD Menu & Hot Keys
  • Warranty:2 Year Warranty, Includes Crystal Care Service Plan
32 Port Cat5 KVM Over IP Switch Options -
  • Power:12V DC, 24V DC, 48V DC, 125V DC
  • IntegrationIntegrate into 17", 19" or 20" 1U Rack Mount Monitor
  • ExansionUpgrade to 16 Port or 32 Port
  • Warranty3 Year Extended Warranty
Download More Info-




Reviews

Write Your Own Review

You're reviewing: Cat5 3 Console 32 Port KVM Switch (Part#Cat5M-3203)

Tags

Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Product Specification

KVM Port
Port # : 16 or 32
Connector : RJ-45
Connectivity : DP / HDMI / DVI-D / VGA dongle via Cat6 / Cat5 cable
to server up to 40 meters (132 feet)
Resolution : 16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200
Local Console
Graphic Connector : 1 x DB-15 VGA
Input device : 2 x USB type A for keyboard & mouse
Resolution : 16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200
IP Console
Connector : N/A
User management : N/A
Network protocol : N/A
Security : N/A
Browser : N/A
Resolution : N/A
Matrix Cat5 KVM Switches with IP Connectivity Available

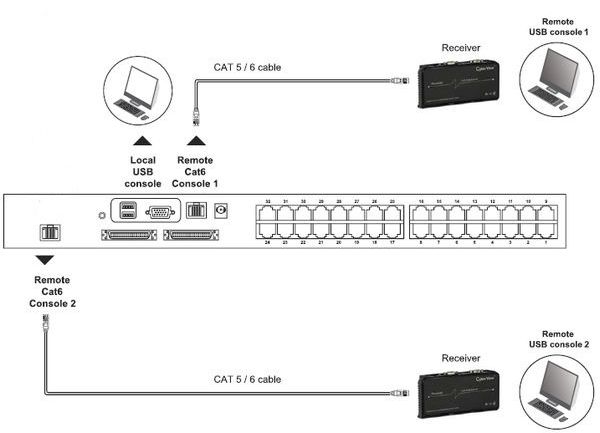

Remote Cat5 / Cat6 Console
Connector : RJ45
Connection : via Cat5 / Cat6 cable to receiver box
Receiver box I/O : VGA + 2 x USB type A for keyboard & mouse

Receiver box

16:9 - max. 1920 x 1080 ( Max. 50 meters Cat6 cable )
16:10 - max. 1440 x 900 ( Max. 100 meters Cat6 cable )
4:3 - max. 1600 x 1200 ( Max. 100 meters Cat6 cable )
4:3 - max. 1280 x 1024 ( Max. 150 meters Cat6 cable )
Management

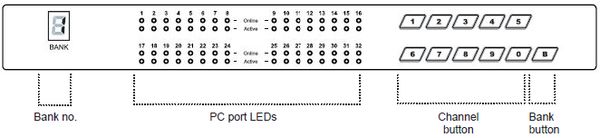

Port switching OSD, front button & keyboard hotkeys
Expansion 8-level cascade up to 256 servers
Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption Max. 34W
Compatibility
Hardware HP / IBM / Dell PC, Server and Blade Server
SUN / Mac
OS support Windows / Linux / Unix / Mac OS
Compliance
Safety cUL, FCC & CE certified
Environment RoHS2 & REACH compliant
Environment
Operating temp. 0 to 55°C degree
Storage temp. -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration
Physical
Product (W x D x H) 443 x 171 x 44 mm
17.4 x 6.7 x 1.73 inch
Packing (W x D x H) 500 x 400 x 90 mm
19.7 x 15.7 x 3.5 inch
Weight Net 3 kg / 6.6 lb
Gross 5 kg / 11 lb
Chassis color Dark
Chassis materials Steel
