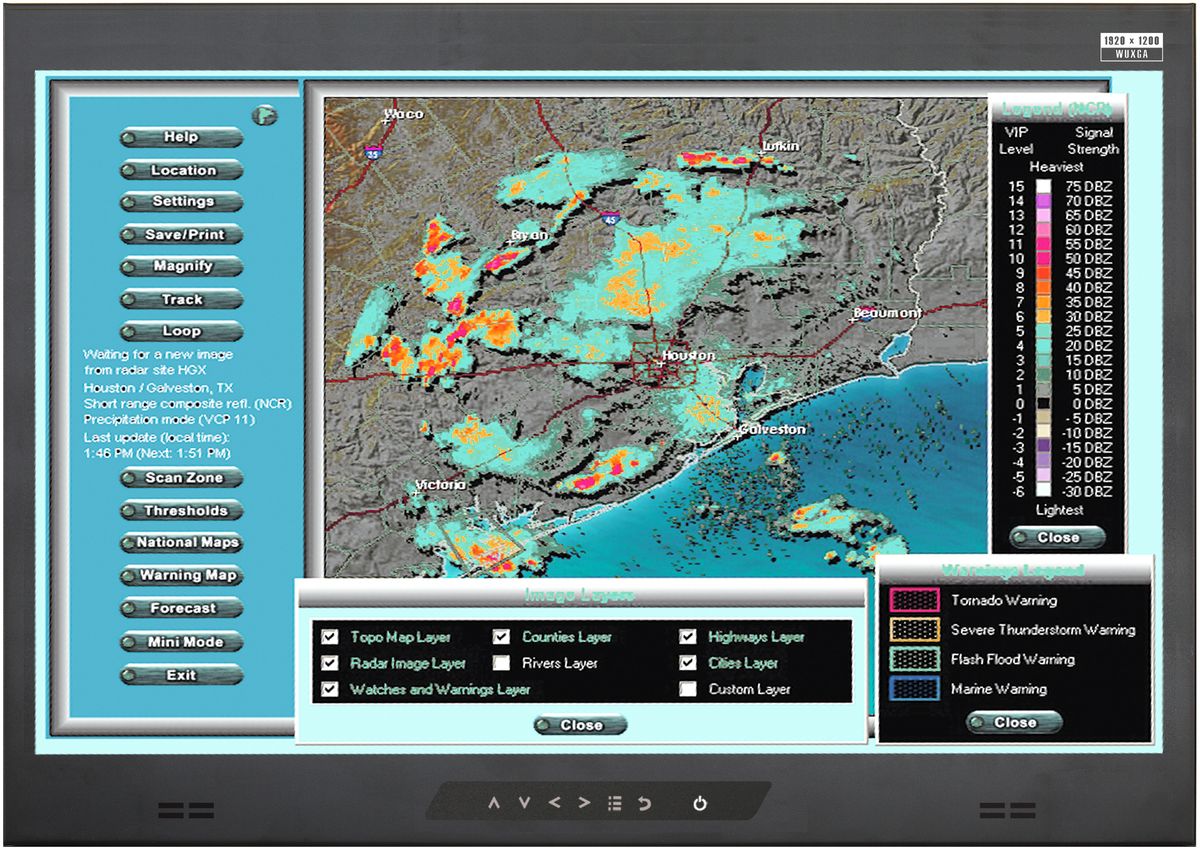

9U 24" WUXGA 1920 X 1200 Rackmount LCD Panel (RMP-161-X24)
Special Price
$1,568.00
Regular Price
$1,960.00
- Video Input - VGA, DVI-D, HDMI 1.3 w/Speaker
- Optional Video Input - 3G/HD/SD-SDI
- Touchscreen eResistive or InfraRed 6-point mutli-touch option
- Includes 2 Year Warranty and Exclusive Crystal Care Service Plan
More Information
| Product Specification |
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
VGA + DVI-D + HDMI 1.3 |
| Video Option |
|---|
| Digital / Analog |
HDMI / SDI |
HDMI 1.3
3G / HD / SD-SDI Broadcast Grade Input
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
24.1" |
| Native resolution |
1920 x 1200 |
| Brightness(cd/m²) |
300 |
| Contrast ratio (typ.) |
1000:1 |
| Max Color |
16.7 M |
| Viewing angle (L/R/U/D) |
89/89/89/89 |
| Responsive time(ms) |
14 |
| Dot pitch (mm) |
0.27 |
| Display area (mm) |
518.4H x 324V |
| Surface treatment |
Anti-Glare. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
30,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 40W |
| Power saving mode |
Max. 5W |
| Power button on |
Max. 1W |

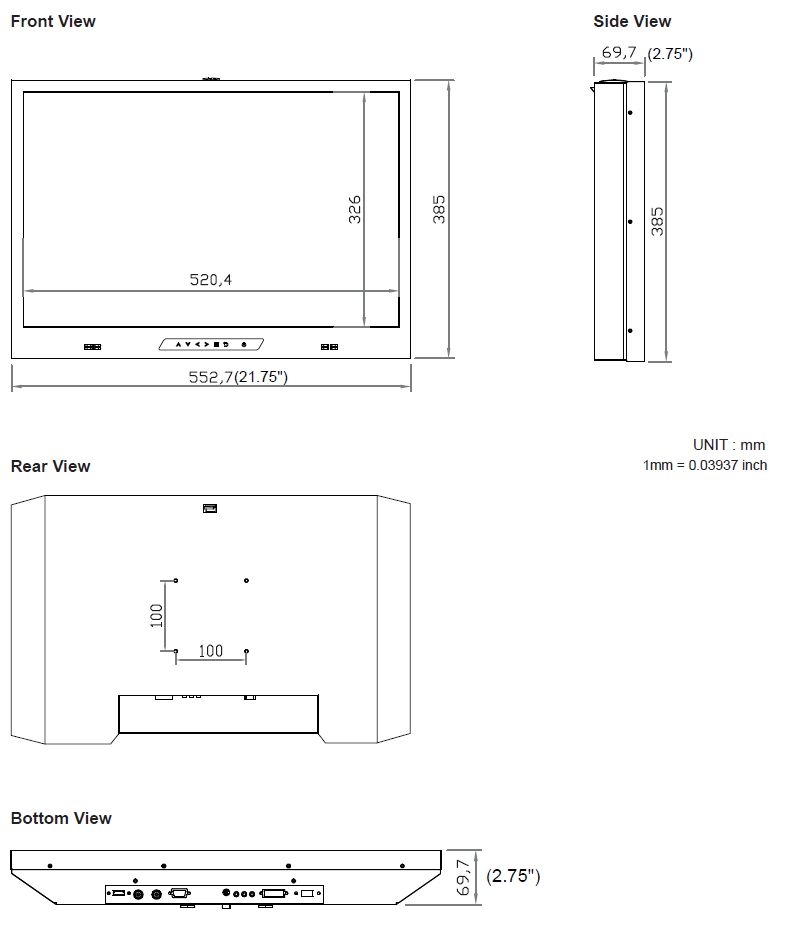

| Physical |
|---|
Product
(W x D X H) |
Millimeters |
553 x 70 x 385 mm |
| Inches |
21.8 X 2.8 X 15.2 inch |
Packing
(W x D X H) |
Millimeters
Inches |
583 x 124 x 529 mm
23 x 4.9 x 20.8 inch |
Net
weight |
KGs |
11.4 kg |
| LBS |
25.1 lb |
Gross
weight |
KGs |
12.7 kg |
| LBS |
28 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

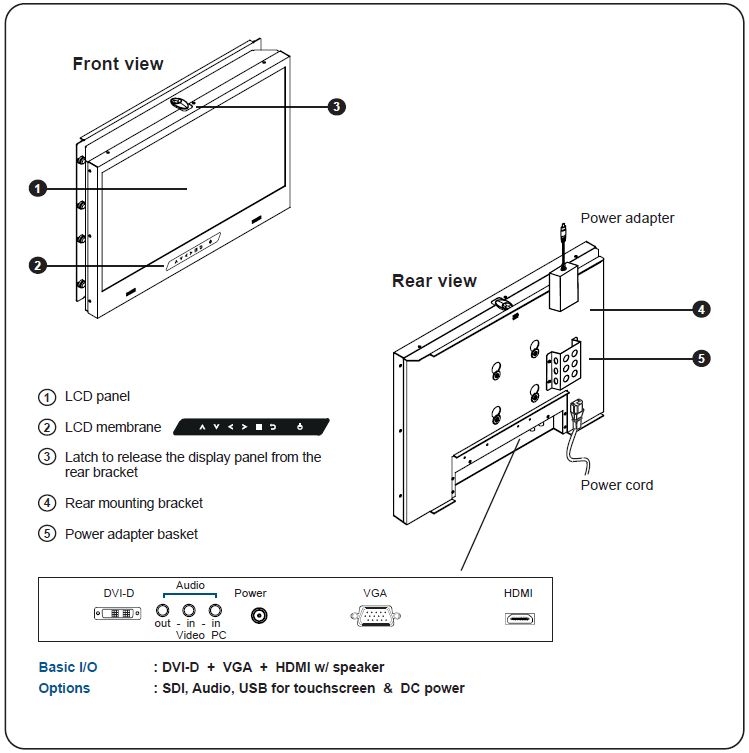

24" WUXGA Rackmount Display Panel
- 9U 24.1" LCD Panel (1920 X 1200 Resolution)
- 300 cd/m2 Brightness
- Video Input - VGA & DVI-D, HDMI 1.3 Input
- PIP Sub-Screen & PBP Dual-screen viewing efficiency
- Optional Resistive or Infrared Multi-Touch touchscreen
- Standard 2 Year Warranty (upgradable to 5 years)
- Built in dual stereo speakers, VESA Mount & Rack Mount
Download More Info -
