8U 21.5" Wide Screen 1920 X 1080 Rackmount LCD Panel (RMP-161-F21)

Be the first to review this product

Special Price $974.00 Regular Price $1,217.50

SKU

RMP-161-F21

Standard Video Input - VGA & DVI-D
Optional - VGA, DVI-D, HDMI 1.3 (supports HDCP), + BNC + S-Video + Audio / SDI
Touchscreen - Resistive or Capacitive Touchscreen
Physical - 19.8"W X 2.5"D X 8U (Mounts on front rail)
DC Power - 12VDC, 24VDC, 48VDC, 125VDC

More Information

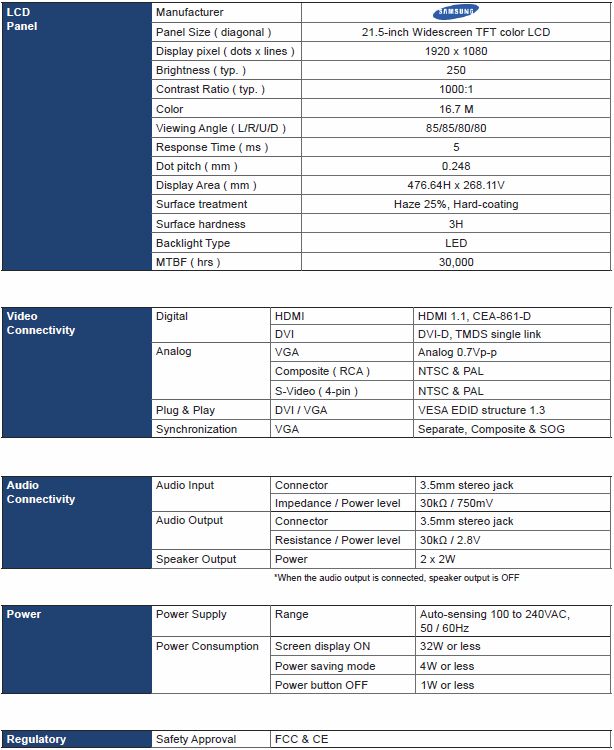

Product Specification

Product Specification

LCD Panel Video Specs
Video input	VGA + DVI-D single link

Video Option
Digital / Analog	HDMI / SDI / Composite	HDMI 1.3 / HDCP 1.3 3G / HD / SD-SDI Broadcast Grade Input S-Video (4-pin) + Composite (BNC) NTSC & PAL

LCD Panel
Panel Size (diagonal)	21.5"
Native resolution	1920 x 1080
Brightness(cd/m²)	250
Contrast ratio (typ.)	1000:1
Max Color	16.7 M
Viewing angle (L/R/U/D)	85/85/80/80
Responsive time(ms)	5
Dot pitch (mm)	0.248
Display area (mm)	476.64H x 268.11V
Surface treatment	Haze 25%. Hard-coating
Surface hardness	3H
Backlight type	LED
MTBF(hrs)	30,000

Power
Input	Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)	Screen on	Max. 25W
	Power saving mode	Max. 4W
	Power button on	Max. 1W

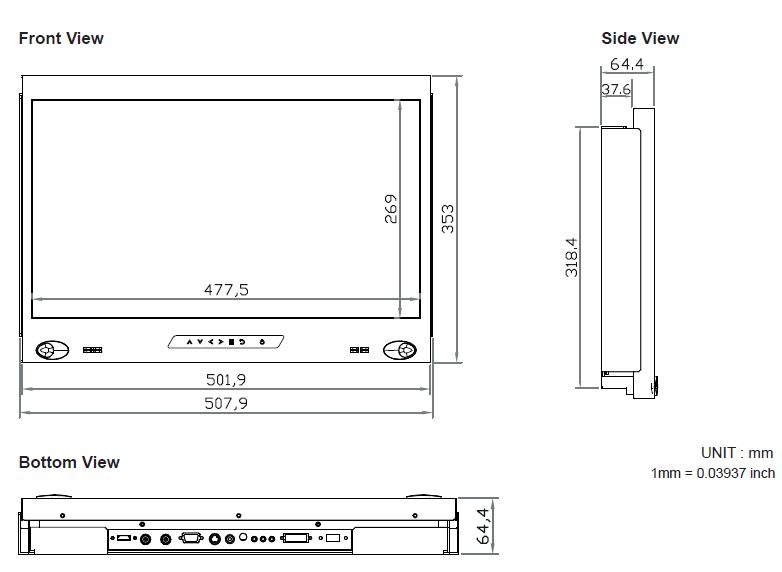

Physical
Product (W x D X H)	Millimeters	502 x 64 x 353 mm
Product (W x D X H)	Inches	19.8 X 2.5 X 13.9 inch
Packing (W x D X H)	Millimeters Inches	585 x 124 x 557 mm 23 x 4.9 x 21.9 inch
Net weight	KGs	8.8 kg
Net weight	LBS	19.4 lb
Gross weight	KGs	11.2 kg
Gross weight	LBS	24.6 lb

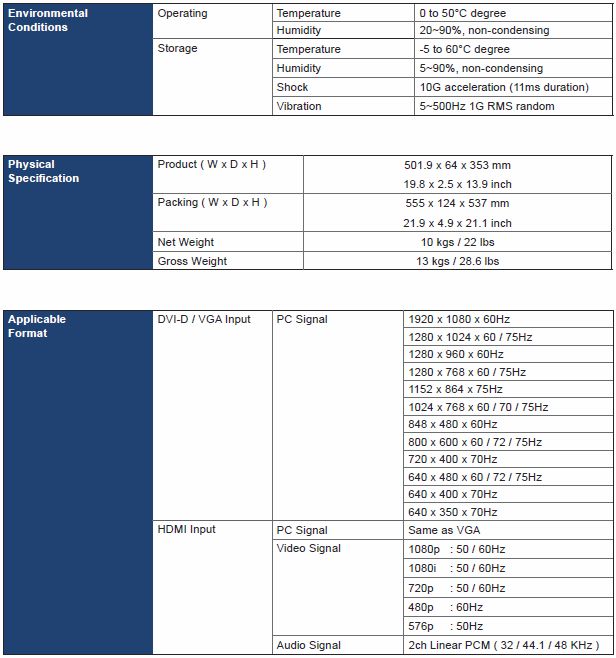

Environment
Operating temp.	0 to 55°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	10~300Hz .5G RMS randon vibration

Compliance
EMC	FCC & CE certifiled
Safety	CE/ LVD certified
Environment	RoHS2 & REACH compliant

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Video Options

Monitor Options

Touch Screen

Power Supply Options

RS-232 Controller

DVI Cable

Warranty

Qty

Add to Wish List Add to Compare

Details

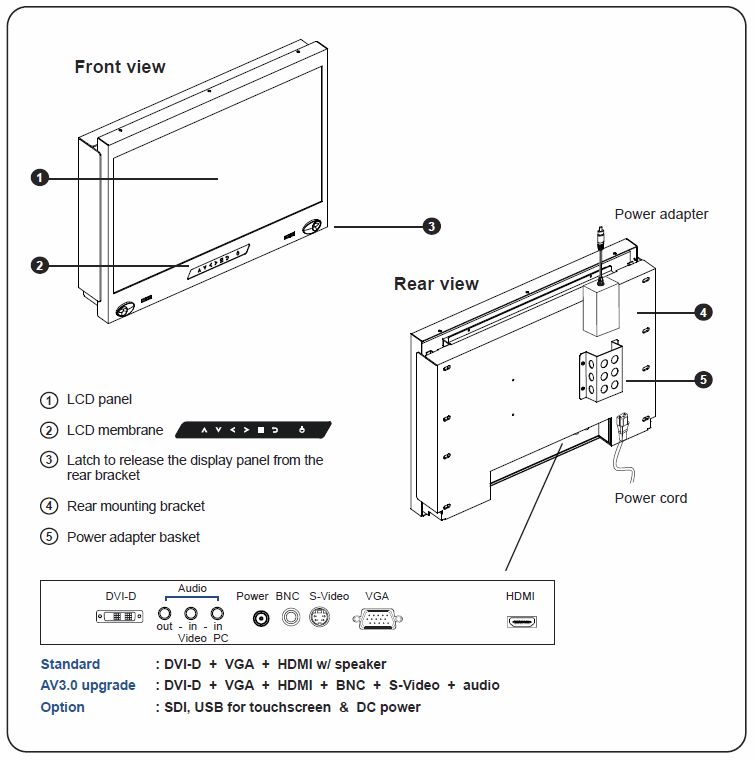

High Resolution Rackmount LCD Panel Features

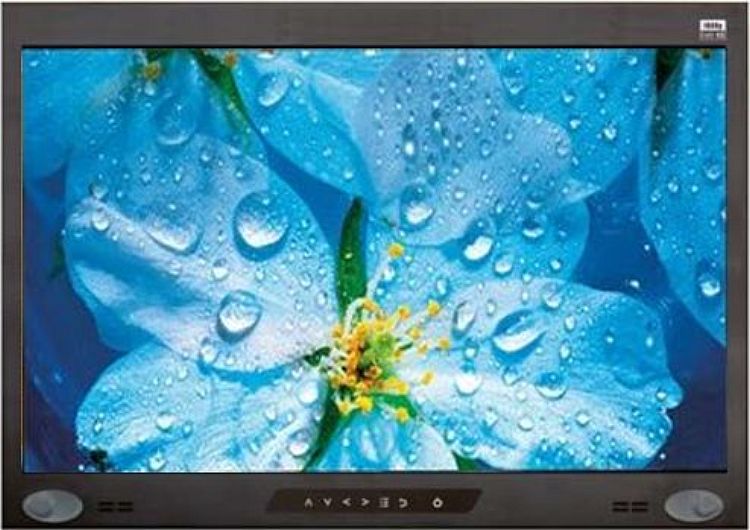

8U 21.5" Samsung 1920 X 1080 Rackmount LCD Panel
Video Input - VGA, DVI-D, HDMI w/Speaker
PIP & Picture by Picture viewing efficiency
Supports HDCP

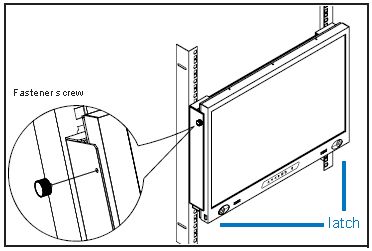

VESA & Rackmount Mounting Options
Green LED Backlit Panel Technology
Ideal for CCTV security & industrial control
2 Year Warranty

Options -

^{Video: DVI-D or HDMI, BNC & S-Video + Audio}
^{Broadcast: 3G / HD / SD-SDI Broadcast Grade Input}
^{Display: MCS - Multi Display Control (RS232 Controller)}
^{Locking: MIL Type Connector (DC Power & VGA)}
^{Tuner Digital TV Tuner (decodes ATSC Signal)}
^{Power: 12VDC, 24VDC, 48VDC}
^{Touchscreen: Resistive or Capacitive}
^{Warranty: Extended 3 Year Warranty}

Download More Info -

Rackmount Monitor Specifications

Rackmount Monitor Specifications
Rackmout Monitor User Manual

Rackmout Monitor User Manual

Rackmount Monitor User Manual
Rackmout Monitor User Manual

Rackmout Monitor User Manual

RS-232 Controller / Multi-Display Controller User Manual
