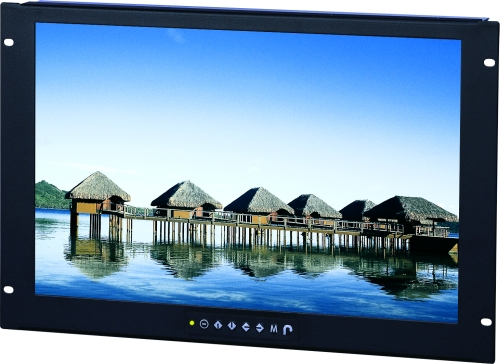

7U 19" 1440 X 900 Wide Screen Rackmount LCD Panel (RMPW-161-19)

Be the first to review this product

Special Price $769.00 Regular Price $961.25

SKU

RMPW-161-19

7U 19" Wide Screen with resistive touchscreeen

Standard Video Input - VGA & DVI-D Video
Video Option - Add HDMI 1.2 + Audio
Video Option - Add 3G/HD/SD-SDI to above video input
Touchscreen Option - Resistive / Capacitive 1pt
(Select RMP-161-17A or RMP-161-17K for Capacitive multi-touch)

More Information

Product Specification

Product Specification

LCD Panel Video Specs
Video input	VGA + DVI-D single link

Rackmount LCD Panel Video Option
Digital / Analog	HDMI / SDI / Composite	HDMI 1.2 / HDCP 1.1 3G / HD / SD-SDI Broadcast Grade Input S-Video (4-pin) + Composite (BNC) NTSC & PAL

LCD Panel
Panel Size (diagonal)	19"
Native resolution	1440 x 900
Brightness(cd/m²)	300
Contrast ratio (typ.)	1000:1
Max Color	16.7 M
Contrast angle(L/R/U/D)	80/80/80/80
Responsive time(ms)	5
Dot pitch (mm)	0.2835
Display area (mm)	408.24H x 255.15V
Surface treatment	Haze 25%,. Hard-coating
Surface hardness	3H
Backlight type	CCFL
MTBF(hrs)	50,000

Power
Input	Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)	Screen on	Max. 25W
	Power saving mode	Max. 4W
	Power button on	Max. 1W

Physical LCD Frame

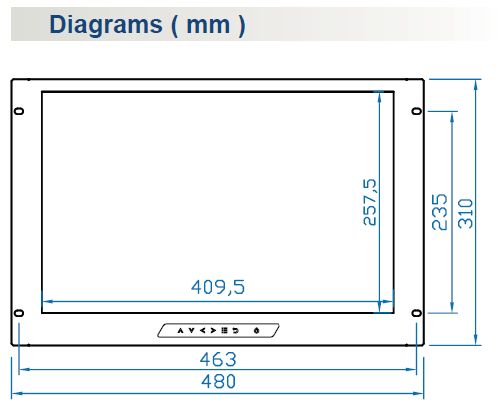

Product (W x D X H)	Millimeters	480 x 58 x 310mm
Product (W x D X H)	Inches	18.9 X 2.3 X 12.2 inch
Packing (W x D X H)	Millimeters Inches	529 x 124 x 451mm 20.8 x 4.9 x 17.8 inch
Net weight	KGs	5.8 kg
Net weight	LBS	12.8 lb
Gross weight	KGs	7.9 kg
Gross weight	LBS	17.4 lb

Environment
Operating temp.	0 to 55°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	10~300Hz .5G RMS randon vibration

Compliance
EMC	FCC & CE certifiled
Safety	CE/ LVD certified
Environment	RoHS2 & REACH compliant

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Video Options

DVI Cable

Touch Screen

Monitor Options

RS-232 Controller

Power Supply Options

Warranty

Qty

Add to Wish List Add to Compare

Details

19" Wide Screen Rackmount LCD Panel Features

7U 19" Wide Screen Samsung 1440 X 900 Rackmount LCD Panel
Video Input - VGA & DVI-D
Ideal for CCTV security & industrial control
2 Year Warranty - includes Crystal Care Service Plan

Options -

Video: DVI-D or HDMI, BNC & S-Video + Audio
Broadcast: 3G / HD / SD-SDI Broadcast Grade Input
Display: MCS - Multi Display Control (RS232 Controller)
Locking: MIL Type Connector (DC Power & VGA)
Power: 12VDC, 24VDC, 48VDC
Touchscreen: Resistive or Capacitive
Warranty: Extended 3 Year Warranty

Download More Info-

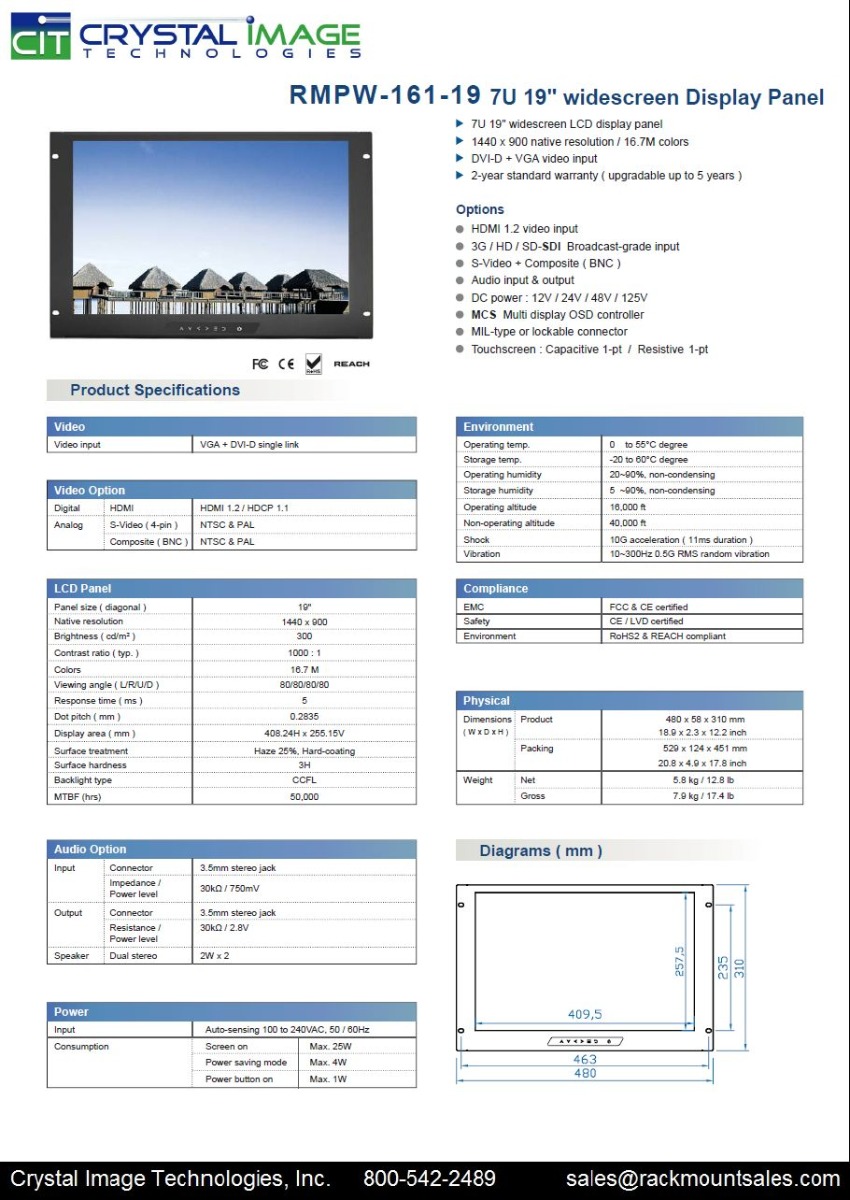

Rackmount Monitor Specifications

Rackmount Monitor Specifications

Rackmout Monitor User Manual

Rackmount LCD Panel User Manual

More Information

More Information

Product Specification

Product Specification

LCD Panel Video Specs
Video input	VGA + DVI-D single link

Rackmount LCD Panel Video Option
Digital / Analog	HDMI / SDI / Composite	HDMI 1.2 / HDCP 1.1 3G / HD / SD-SDI Broadcast Grade Input S-Video (4-pin) + Composite (BNC) NTSC & PAL

LCD Panel
Panel Size (diagonal)	19"
Native resolution	1440 x 900
Brightness(cd/m²)	300
Contrast ratio (typ.)	1000:1
Max Color	16.7 M
Contrast angle(L/R/U/D)	80/80/80/80
Responsive time(ms)	5
Dot pitch (mm)	0.2835
Display area (mm)	408.24H x 255.15V
Surface treatment	Haze 25%,. Hard-coating
Surface hardness	3H
Backlight type	CCFL
MTBF(hrs)	50,000

Power
Input	Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)	Screen on	Max. 25W
	Power saving mode	Max. 4W
	Power button on	Max. 1W

Physical LCD Frame
Product (W x D X H)	Millimeters	480 x 58 x 310mm
Product (W x D X H)	Inches	18.9 X 2.3 X 12.2 inch
Packing (W x D X H)	Millimeters Inches	529 x 124 x 451mm 20.8 x 4.9 x 17.8 inch
Net weight	KGs	5.8 kg
Net weight	LBS	12.8 lb
Gross weight	KGs	7.9 kg
Gross weight	LBS	17.4 lb

Environment
Operating temp.	0 to 55°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	10~300Hz .5G RMS randon vibration

Compliance
EMC	FCC & CE certifiled
Safety	CE/ LVD certified
Environment	RoHS2 & REACH compliant
