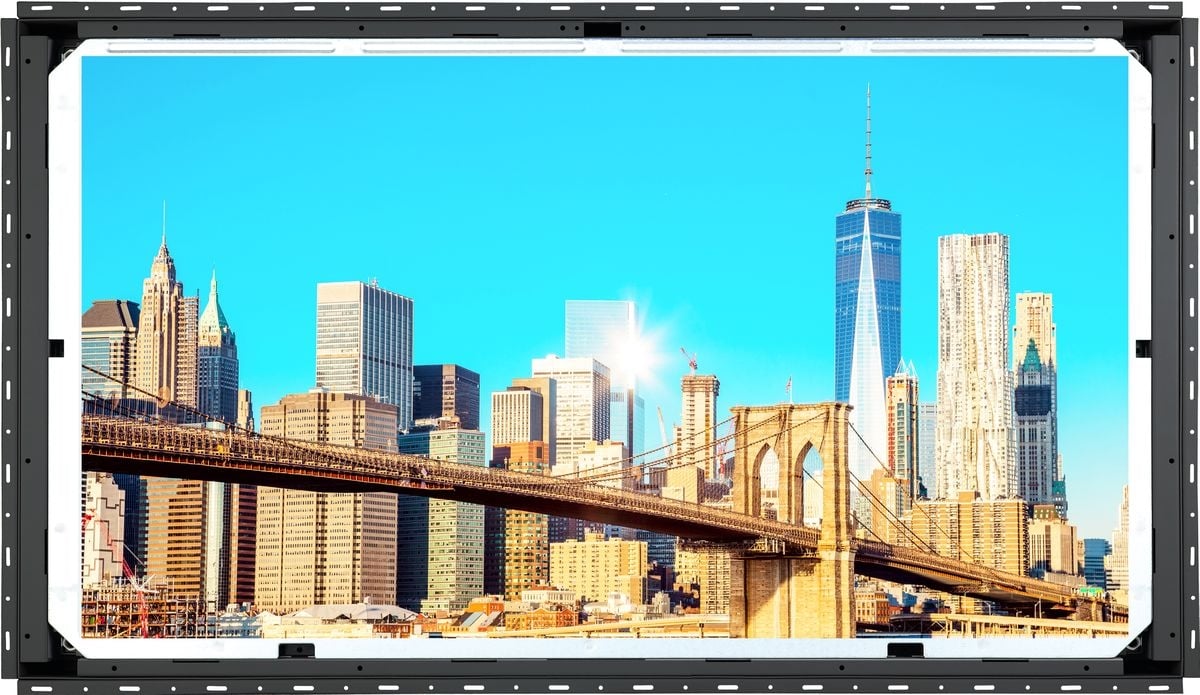

55" 4K Industrial LCD Panel - 3840 X 2160 Resolution (Part# LCD-OP-K55)
Special Price
$2,605.00
Regular Price
$3,256.25
- VIdeo Input - Display Port 1.2 + HDMI 1.4 + HDMI 2.0
- 6mm Rugged Aluminum Bezel
- Optional - Open Frame & NEMA4/IP65 Protection
- VESA and Frame Mount
More Information
Product Specification |
Product Specification
Open Frame LCD Panel Video Specs |
Video input |
Display port 1.2 + HDMI 1.4 + HDMI 2.0 |
Video Option |
Digital Input Option |
HDMI / SDI |
3G / HD / SD-SDI Broadcast Grade Input
|
LCD Panel |
Panel Size (diagonal) |
55" |
Native resolution |
3840 x 2160 |
Brightness(cd/m²) |
450 |
Contrast ratio (typ.) |
1200 :1 |
Max Color |
1.07 Billion, 10-bit |
Contrast angle(L/R/U/D) |
89/89/89/89 |
Responsive time(ms) |
12 |
Dot pitch (mm) |
0.315 |
Display area (mm) |
1209.60H x 680.4V |
Surface treatment |
Anti- glare |
Surface hardness |
2H |
Backlight type |
LED |
MTBF(hrs) |
30,000 |
Power |
Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption (console / K/M) |
Screen on |
Max. 335W |
Power saving mode |
Max. 9W |
Power button on |
Max. 2W |
Physical |
Product (W x D X H) |
Millimeters |
1292 x 81.3 x 773mm |
Inches |
50.9 X 3.3 X 30.4 inch |
Packing (W x D X H) |
Millimeters Inches |
1455 x 212 x 917mm 57.3" X 8.3" X 36.1"
|
Net weight |
KGs |
40.2 kg |
LBS |
88.4 lb |
Gross weight |
KGs |
49.3 kg |
LBS |
108.5 lb |
Environment |
Operating temp. |
0 to 55°C degree |
Strorage temp |
-20 to 60°C degree |
Operating humidity |
20~90%, non-condensing |
Storage humidity |
5 ~90%, non-condensing |
Operating altitude |
16,000 ft |
Non-operating altitude |
40,000 ft |
Shock |
10G acceleration (11ms duration) |
Vibration |
10~300Hz 1G RMS randon vibration |
Compliance |
EMC |
FCC & CE certifiled |
Safety |
CE/ LVD certified |
Environment |
RoHS2 & REACH compliant |
|
55" Open Frame 4K Industrial LCD Display Features
- 55" LCD with 3840 X 2160 UHD Native Resolution
- 1920 X 1080 & 1600 X 1200 resolution support
- DIaplay Port 1.2 + HDMI 1.4 + HDMI 2.0 Video Input
- Rugged Construction against external impact
- 6mm Aluminum Front Bezel
- 2 Year Warranty - includes Crystal Care Service Plan
Industrial LCD Panel Options -
- Screen Protection: Front NEMA4/ IP65 Protective Glass
- Embedded HDMI Receiver Module & Transmitter
- HDMI Quad Display
- Multi-Display: Multi-display control
- Power:12VDC, 24VDC, 48VDC, 125VDC
- Industrial Touch Screen Monitor: Resistive / Infrared 6-point / Capacitive 10 Point MULTI-TOUCH
- Connector:Lockable DC Jack, Lockable USB Jack
- MIL-type Connector:MIL-type DC lockable jack, MIL-type VGA lockable jack
