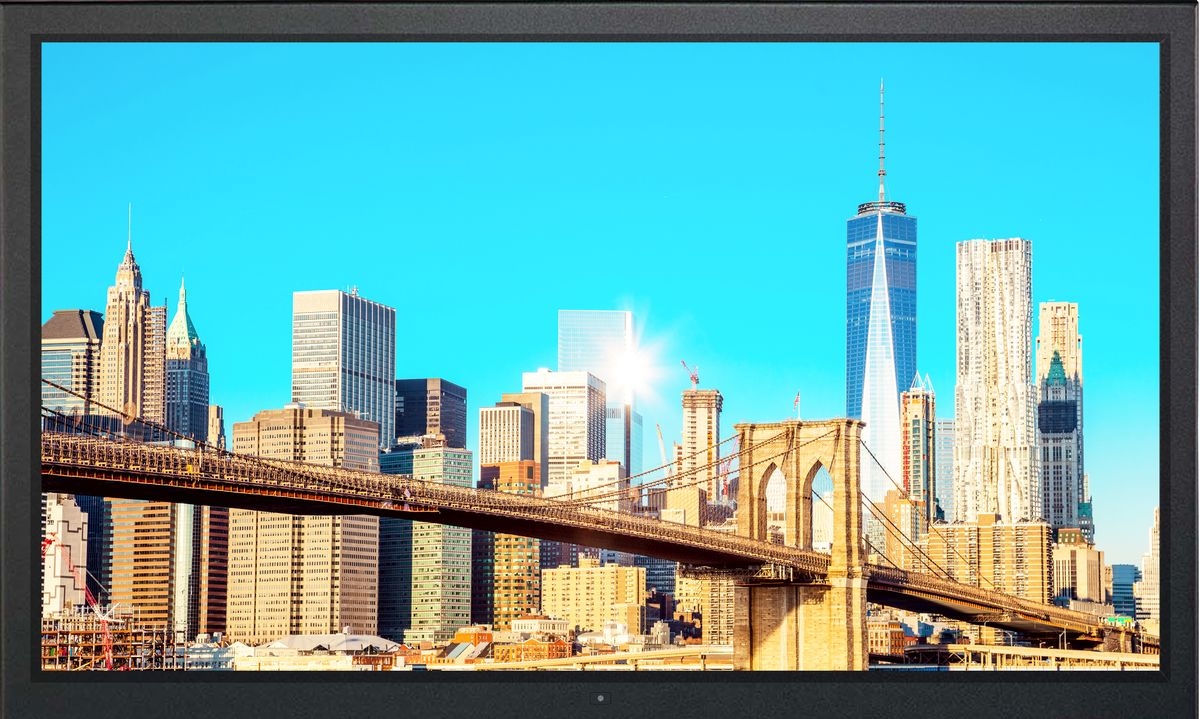

55" 4K Industrial LCD Panel - 3840 X 2160 Resolution (Part# LCD-AP-K55)

Special Price $2,849.00 Regular Price $3,347.00
SKU
LCD-AP-K55
  • VIdeo Input - Display Port 1.2 + HDMI 1.4 + HDMI 2.0
  • 6mm Rugged Aluminum Bezel
  • Optional - Open Frame & NEMA4/IP65 Protection
  • VESA and Frame Mount



More Information
Product Specification

Product Specification

LCD Panel Video Specs
Video input Display port 1.2 + HDMI 1.4 + HDMI 2.0
Video Option
 Digital Input Option  HDMI / SDI


3G / HD / SD-SDI Broadcast Grade Input

LCD Panel
Panel Size (diagonal) 55"
Native resolution 3840 x 2160
Brightness(cd/m²) 450
Contrast ratio (typ.) 1200 :1
Max Color 1.07 Billion, 10-bit
Contrast angle(L/R/U/D) 89/89/89/89
Responsive time(ms) 12
Dot pitch (mm) 0.315
Display area (mm) 1209.60H x 680.4V
Surface treatment Anti- glare
Surface hardness 2H
Backlight type LED
MTBF(hrs) 30,000
Power
Input Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption
(console / K/M)
Screen on Max. 335W
Power saving mode Max. 9W
Power button on Max. 2W
Physical
 Product
 (W x D X H)
Millimeters 1295 x 89.3 x 776mm
Inches 51 X 3.5 X 30.6 inch
 Packing
 (W x D X H)
Millimeters
Inches

1455 x 212 x 917mm
57.3" X 8.3" X 36.1"

Net
weight
KGs 42.5 kg
LBS  99.4 lb
Gross
weight
KGs 54.3 kg
LBS 130.5 lb
Environment
Operating temp. 0 to 55°C degree
Strorage temp -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 1G RMS randon vibration

Compliance
EMC FCC & CE certifiled
Safety CE/ LVD certified
Environment RoHS2 & REACH compliant
