2U 19" Short Depth (18.9") LCD Rackmount Monitor with Seperate Sliding Monitor and Keyboard (Part#RM-118-19)

Special Price $1,061.00 Regular Price $1,297.00
SKU
RM-118-19
2U Dual Slide
More Information
Product Specification

Product Specification

Console Port
Video input VGA
KB/MS Combo(USB or PS2)
VGA console 6ft cable : CB-6 Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Video Option
Digital DVI DVI-D single link
HDMI HDMI 1.2 / HDCP 1.1
Analog S-Video ( 4-pin ) NTSC & PAL
Composite ( BNC ) NTSC & PAL
LCD PanelRM-118-17RM-118-19
Panel size ( diagonal ) 17" 19"
Native resolution 1280 x 1024 1280 x 1024
Brightness ( cd/m² ) 250 250
Contrast ratio ( typ. ) 1000 : 1 1000 : 1
Colors 16.7 M 16.7 M
Viewing angle ( L/R/U/D ) 85/85/80/80 85/85/80/80
Panel Response time ( ms ) 5 5
Dot pitch ( mm ) 0.264 0.294
Display area ( mm ) 337.92H x 270.33V 376.32H x 270.33V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
Backlight type LED
MTBF (hrs) 30,000
Audio Option
Input Connector 3.5mm stereo jack
Impedance /
Power level
30kQ / 750mV
Output Connector 3.5mm stereo jack
Resistance /
Power level
30kQ / 2.8V
Speaker Dual stereo 2W x 2
Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
(console / KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
PhysicalRM-118-17RM-118-19
Product
( W x D x H )
Single console 442 x 480 x 44 mm
17.4 x 18.9 x 1.73 inch
442 x 480 x 44 mm
17.4 x 18.9 x 1.73 inch
Console w/ KVM 442 x 480 x 44 mm
17.4 x 18.9 x 1.73 inch
442 x 480 x 44 mm
17.4 x 18.9 x 1.73 inch
Packing
( W x D x H )
Single console /
Console w/ KVM
585 x 620 x 190 mm
23 x 24.4 x 7.5 inch
585 x 620 x 190 mm
23 x 24.4 x 7.5 inch
Net
weight
Single console 20.4 kg / 44.9 lb 20.8 kg / 45.8 lb
Console w/ KVM 21.1 kg / 46.4 lb 21.5 kg / 47.3 lb
Gross
weight
Single console 24.8 kg / 54.6 lb 25.2 kg / 55.4 lb
Console w/ KVM 27 kg / 59.4 lb 27.4 kg / 60.3 lb
Environment
Operating temp. -20 to 65°C degree
Strorage temp -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating alttiude 16,000 ft
Non-operating attude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration
Mounting DistanceRM-118-17RM-118-19
Single console drawer 470 ~ 700 mm
18.5 ~ 27.6 inch
510 ~ 740 mm
20.1 ~ 29.1 inch
Console w/ KVM drawer 470 ~ 800 mm
18.5 ~ 31.5 inch
510 ~ 840 mm
20.1 ~ 33.1 inch
Compliance
EMC FCC, CE & CCC certified
Safety c UL us, CE / LVD & CCC certified
Environment RoHS2 & REACH compliant

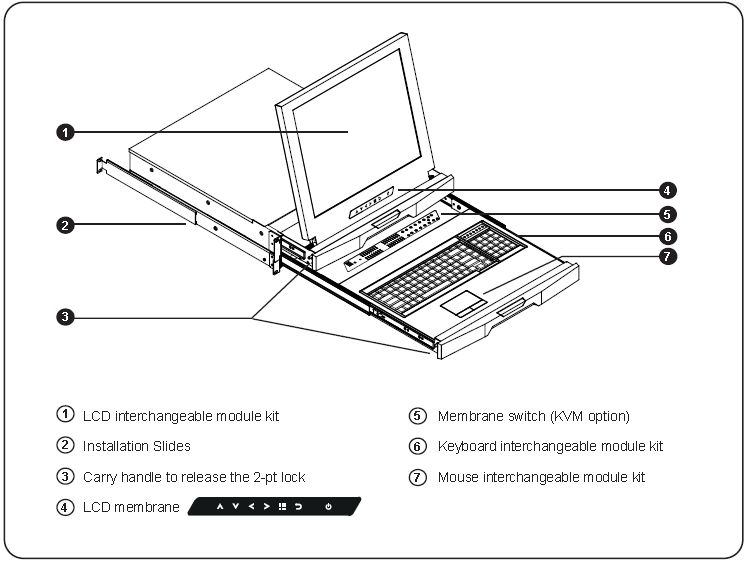

Features
