2U 19" 1280 X 1024 Rackmount LCD, Dual Slide W/ 32 Port Cat5 KVM Over IP (Part#RM-149-19-Cat5-IP32)
Special Price
$2,570.00
Regular Price
$3,212.50
- Dual Slide (Keyboard and LCD Slide Indendently)
- Short Depth Chassis with Integrated KVM Switch (18.9" Chassis Depth)
- Includes 32 Port Cat5 KVM Over IP Switch
- Click Here for Cat5 KVM Switch Dongles
More Information

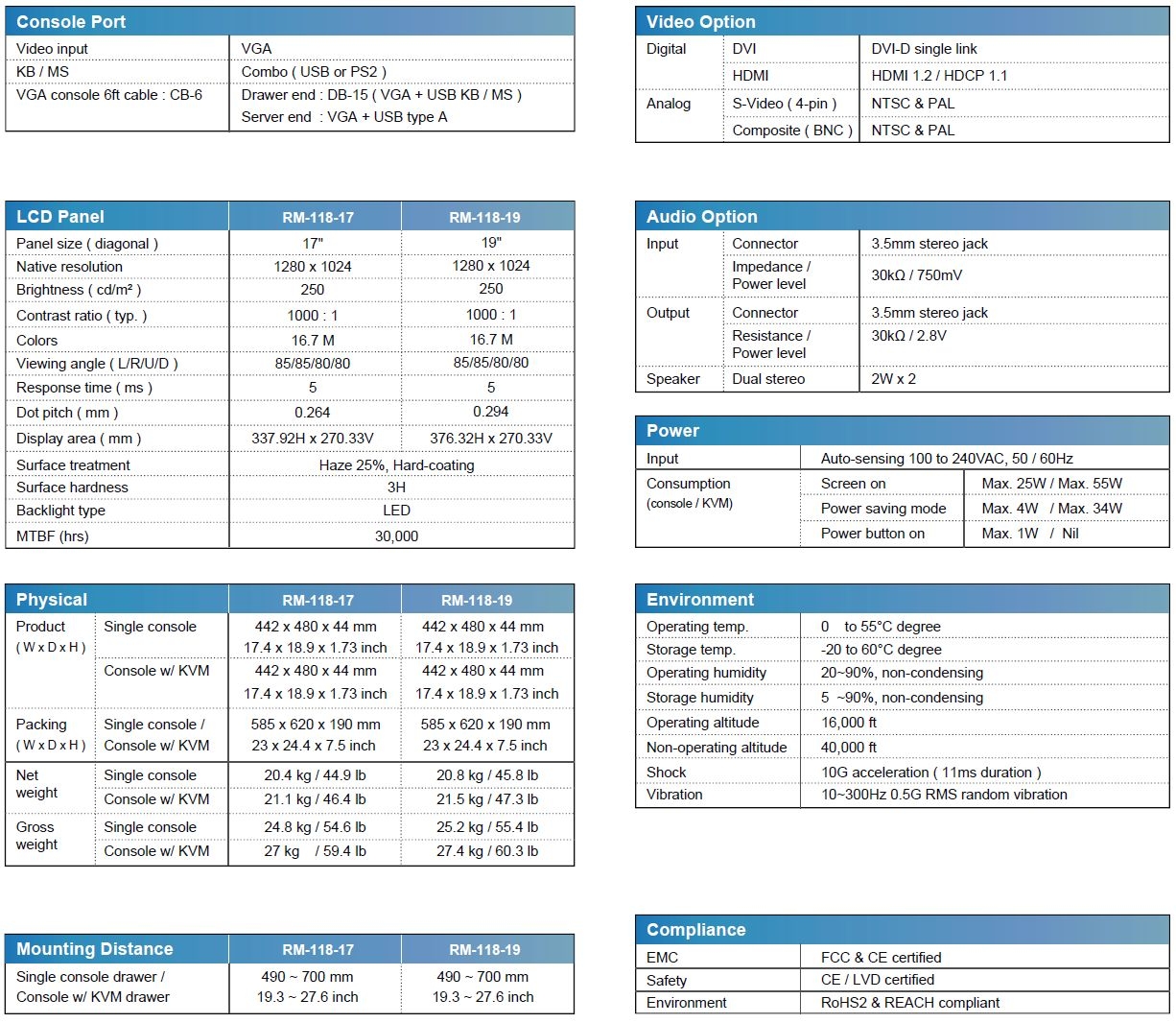

| Product Specification |
Product Specification
| Console Port |
|---|
| Video input |
VGA |
| KB/MS |
Combo(USB or PS2) |
| VGA console 6ft cable : CB-6 |
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A |
| Video Option |
|---|
| Digital |
DVI |
DVI-D single link |
| HDMI |
HDMI 1.2 / HDCP 1.1 |
| Analog |
S-Video ( 4-pin ) |
NTSC & PAL |
| Composite ( BNC ) |
NTSC & PAL |
| LCD Panel | RM-111-17 | RM-111-19 |
|---|
| Panel size ( diagonal ) |
17" |
19" |
| Native resolution |
1280 x 1024 |
1280 x 1024 |
| Brightness ( cd/m² ) |
250 |
250 |
| Contrast ratio ( typ. ) |
1000 : 1 |
1000 : 1 |
| Colors |
16.7 M |
16.7 M |
| Viewing angle ( L/R/U/D ) |
85/85/80/80 |
85/85/80/80 |
| Panel Response time ( ms ) |
5 |
5 |
| Dot pitch ( mm ) |
0.264 |
0.294 |
| Display area ( mm ) |
337.92H x 270.33V |
376.32H x 270.33V |
| Surface treatment |
Haze 25%, Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF (hrs) |
30,000 |
| Audio Option |
|---|
| Input |
Connector |
3.5mm stereo jack |
Impedance /
Power level |
30kQ / 750mV |
| Output |
Connector |
3.5mm stereo jack |
Resistance /
Power level |
30kQ / 2.8V |
| Speaker |
Dual stereo |
2W x 2 |
| Power |
|---|
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
Consumption
(console / KVM) |
Screen on |
Max. 25W / Max. 55W |
| Power saving mode |
Max. 4W / Max. 34W |
| Power button on |
Max. 1W / Nil |
| Physical | RM-111-17 | RM-111-19 |
|---|
Product
( W x D x H ) |
Single console |
442 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch |
442 x 500 x 44 mm
17.4 x 19.7 x 1.73 inch |
| Console w/ KVM |
442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch |
442 x 620 x 44 mm
17.4 x 24.4 x 1.73 inch |
Packing
( W x D x H ) |
Single console /
Console w/ KVM |
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch |
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch |
Net
weight |
Single console |
12 kg / 26.4 lb |
12.7 kg / 27.9 lb |
| Console w/ KVM |
13 kg / 28.6 lb |
13.7 kg / 30.1 lb |
Gross
weight |
Single console |
16.6 kg / 36.5 lb |
17.3 kg / 38.1 lb |
| Console w/ KVM |
19 kg / 41.8 lb |
19.7 kg / 43.3 lb |
| Environment |
|---|
| Operating temp. |
-20 to 65°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
| Mounting Distance | RM-111-17 | RM-111-19 |
|---|
| Single console drawer |
470 ~ 700 mm
18.5 ~ 27.6 inch |
510 ~ 740 mm
20.1 ~ 29.1 inch |
| Console w/ KVM drawer |
470 ~ 800 mm
18.5 ~ 31.5 inch |
510 ~ 840 mm
20.1 ~ 33.1 inch |
| Compliance |
|---|
| EMC |
FCC, CE & CCC certified |
| Safety |
c UL us, CE / LVD & CCC certified |
| Environment |
RoHS2 & REACH compliant |
Product Specification
| KVM Port |
|---|
| Port # : |
32 KVM Switch Ports |
| Connector : |
RJ-45 |
| Connectivity : |
DP / HDMI / DVI-D / VGA dongle via Cat6 / Cat5 cable
to server up to 40 meters (132 feet) |
| Resolution : |
16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200 |
| Local Console |
|---|
| Graphic Connector : |
Integrated into RM-111-19 Console Drawer |
| Input device : |
2 x USB type A for keyboard & mouse |
| Resolution : |
16:9 - max. 1920 x 1080 / 4:3 - max. 1600 x 1200 |
| IP Console |
|---|
| Connector : |
RJ45 |
| User management : |
1 x active user, 15-user login |
| Network protocol : |
DHCP / BOOTP / DNS |
| Security : |
SSL v3, RSA, AES, HTTP / HTTPs, CSR |
| Browser : |
Internet Explorer |
| Resolution : |
4:3 - max. 1600 x 1200 |
| IP console upgrade option for resolution support 1920 x 1080 |
| Management |
|---|
| Port switching |
OSD, front button & keyboard hotkeys |
| Expansion |
8-level cascade up to 256 servers |
| Power |
|---|
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption |
Max. 34W |
| Compatibility |
|---|
| Hardware |
HP / IBM / Dell PC, Server and Blade Server
SUN / Mac |
| OS support |
Windows / Linux / Unix / Mac OS |
| Compliance |
|---|
| Safety |
cUL, FCC & CE certified |
| Environment |
RoHS2 & REACH compliant |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Storage temp. |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating altitude |
16,000 ft |
| Non-operating altitude |
40,000 ft |
| Shock |
10G acceleration ( 11ms duration ) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
| Physical |
|---|
| Product (W x D x H) |
443 x 171 x 44 mm
17.4 x 6.7 x 1.73 inch |
| Packing (W x D x H) |
500 x 400 x 90 mm
19.7 x 15.7 x 3.5 inch |
| Weight |
Net |
3 kg / 6.6 lb |
| Gross |
5 kg / 11 lb |
| Chassis color |
Dark |
| Chassis materials |
Steel |
|

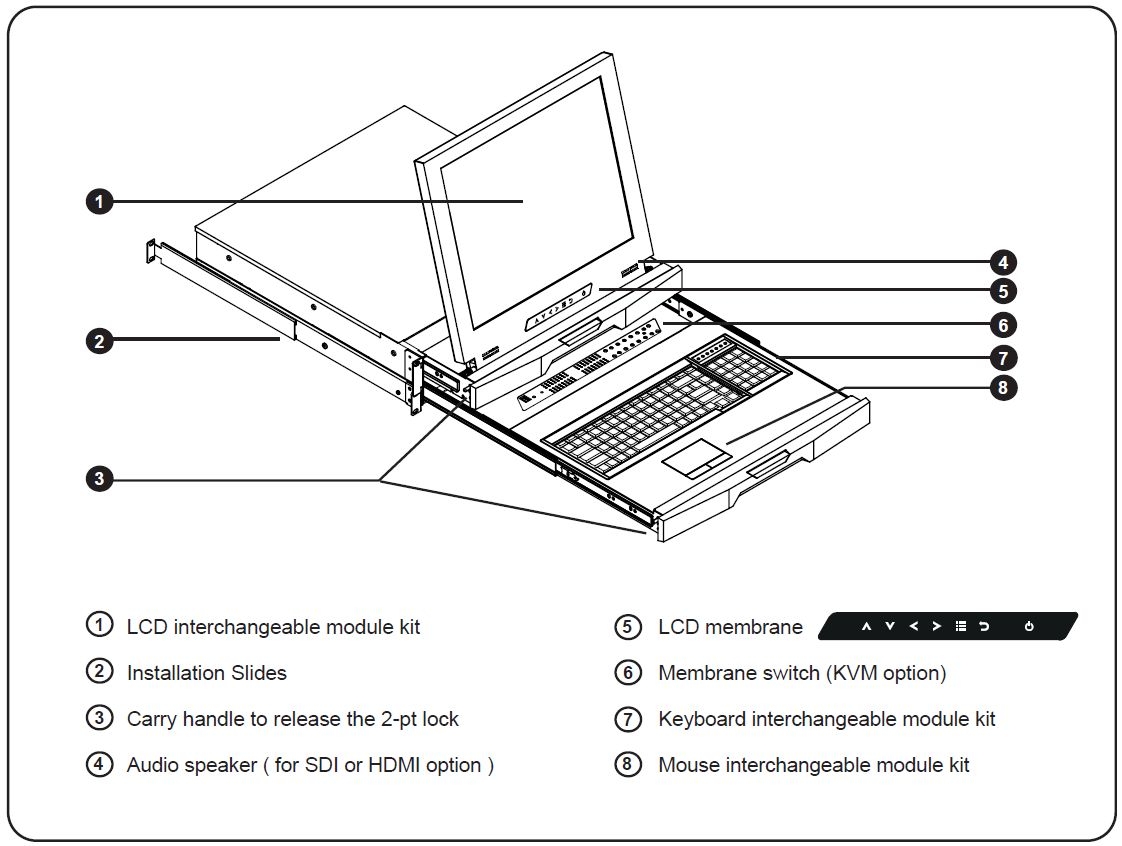

2U DUAL SLIDE 19" Rackmount Monitor Features
- 2U 19" 1280 X 1024 LCD Rackmount Monitor Drawer
- 104 Key Notebook Keyboard with Touchpad or Trackball Mouse
- Rack Mount Monitor Chassis Depth 18.9" (adjusts to 29.5")
- Monitor & Keyboard Slide Independent of each other
- Rugged Molded Front Handle with 2 Pt Quick Release latch
- 2 Year Warranty - includes Crystal Care Service Plan
2U Rackmount LCD Options -
- Video:
- Audio:
- Power: 12VDC, 24VDC, 48VDC
- Touchscreen: NA
- Warranty: Extended 3 Year Warranty

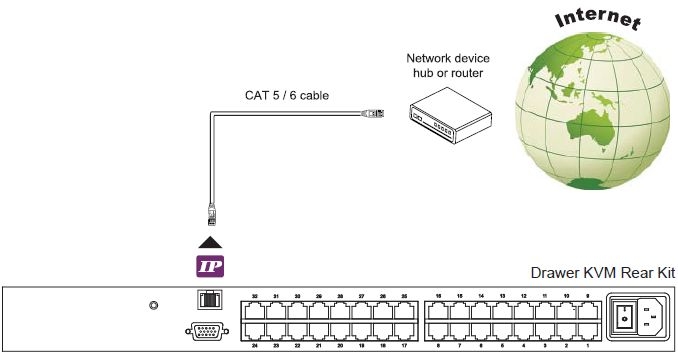

32 Port Cat5 KVM Over IP Switch Features -
- Console: 1 Local Console, 1 Remote IP Console (BIOS Level Access)
- Cat5 Distance: Cat5 or Cat6 Cable Distance - Up to 130ft

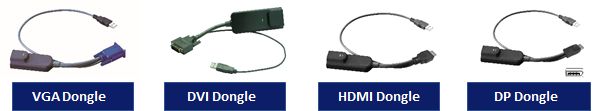

- Dongle: VGA DVI HDMI DP USB-C
- Compatibility: PCs, SUN, Mac G3 / G4 Mac / iMac- Windows, Unix, Linux
Download More Info -
