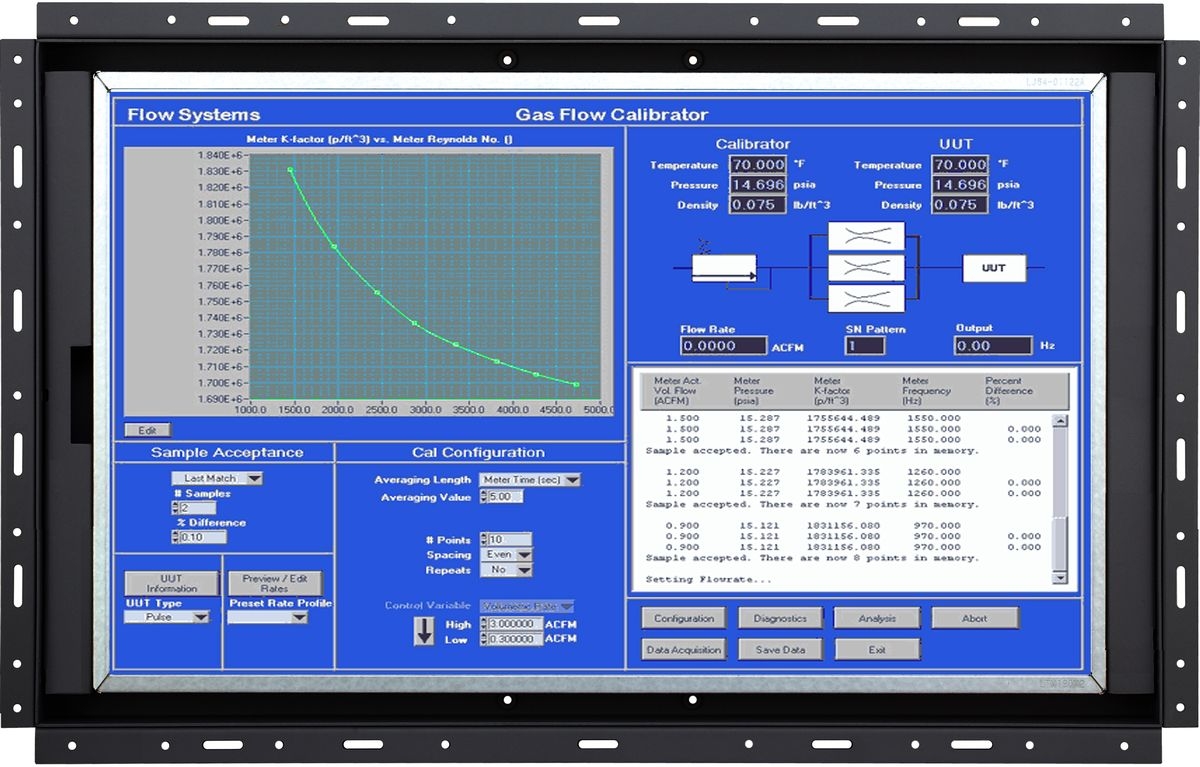

21" Rugged Open Frame 1920 X 1080 - Industrial LCD Panel (Part# LCD-OP-F21)
Special Price
$887.00
Regular Price
$1,108.75
- VGA & DVI-D, HDMI Input - Optional BNC & S-Video + Audio
- 3MM Protective Glass - Optional NEMA4/IP65 LED Display Panel
- Optional - Resistive or 10 Point MultTouch Capacitive Touchscreen
- Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 12VDC / 24VDC / 48VDC / 125VDC
More Information
| Product Specification |
Product Specification
| LCD Panel Video Specs |
|---|
| Video input |
VGA + DVI-D single link |
| Video Option |
|---|
| Digital / Analog |
HDMI / SDI / Composite |
HDMI 1.3 / HDCP 1.3
3G / HD / SD-SDI Broadcast Grade Input
S-Video (4-pin) + Composite (BNC)
NTSC & PAL
|
| LCD Panel |
|---|
| Panel Size (diagonal) |
21.5" |
| Native resolution |
1920 x 1080 |
| Brightness(cd/m²) |
250 |
| Contrast ratio (typ.) |
1000:1 |
| Max Color |
16.7 M |
| Viewing angle (L/R/U/D) |
85/85/80/80 |
| Responsive time(ms) |
5 |
| Dot pitch (mm) |
0.248 |
| Display area (mm) |
476.64H x 268.11V |
| Surface treatment |
Haze 25%. Hard-coating |
| Surface hardness |
3H |
| Backlight type |
LED |
| MTBF(hrs) |
30,000 |
| Power |
|---|
| Input |
Input Auto-sensing 100 to 240 VAC, 50/60Hz |
Consumption
(console / K/M) |
Screen on |
Max. 25W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |

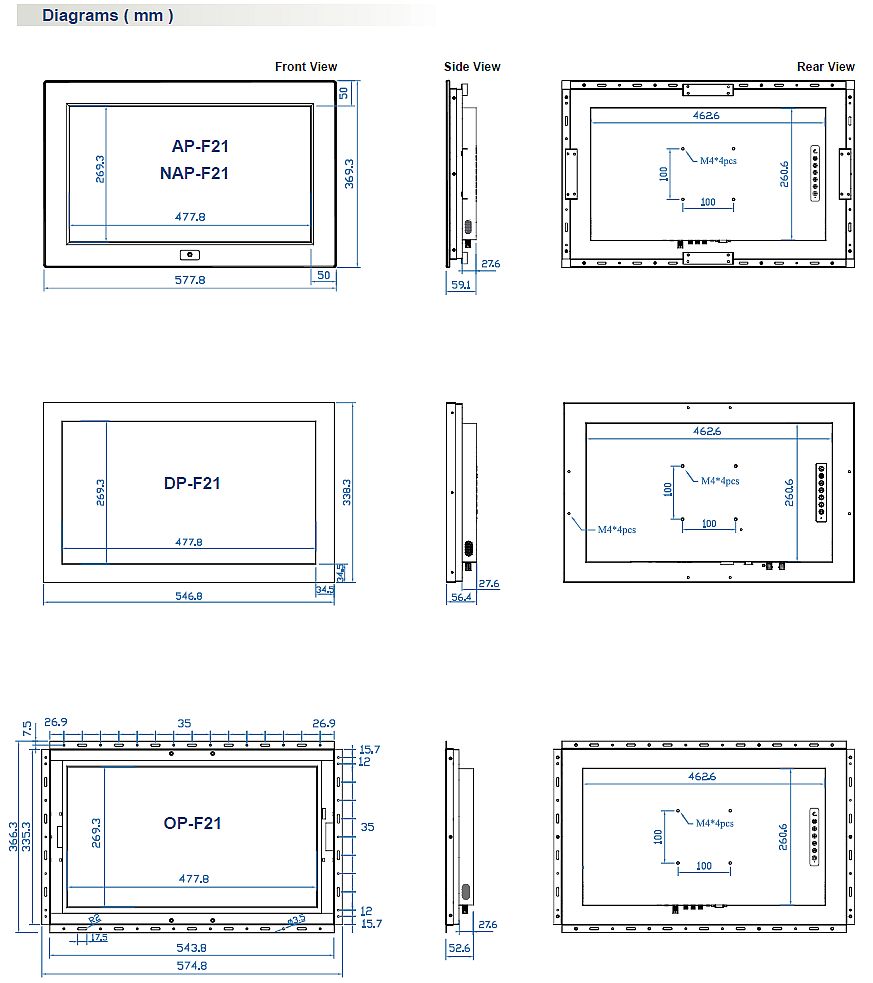

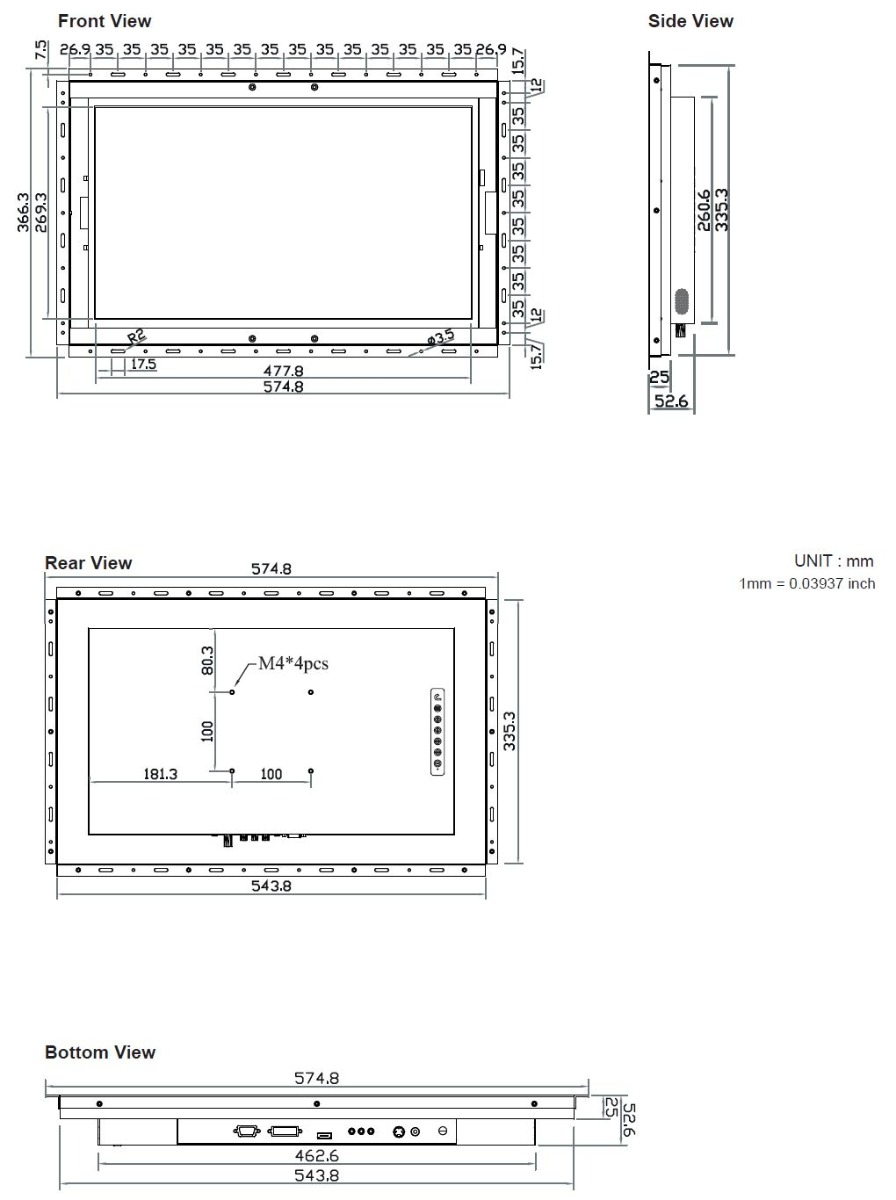

| Physical |
|---|
Product
(W x D X H) |
Millimeters |
574.8 x 52.6 x 366.3 mm |
| Inches |
22.6 X 2.1 X 14.4 inch |
Packing
(W x D X H) |
Millimeters
Inches |
659 x 117 x 640 mm
25.9 x 4.6 x 25.2 inch |
Net
weight |
KGs |
6.7 kg |
| LBS |
14.7 lb |
Gross
weight |
KGs |
10.4 kg |
| LBS |
22.9 lb |
| Environment |
|---|
| Operating temp. |
0 to 55°C degree |
| Strorage temp |
-20 to 60°C degree |
| Operating humidity |
20~90%, non-condensing |
| Storage humidity |
5 ~90%, non-condensing |
| Operating alttiude |
16,000 ft |
| Non-operating attude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz .5G RMS randon vibration |
| Compliance |
|---|
| EMC |
FCC & CE certifiled |
| Safety |
CE/ LVD certified |
| Environment |
RoHS2 & REACH compliant |
|

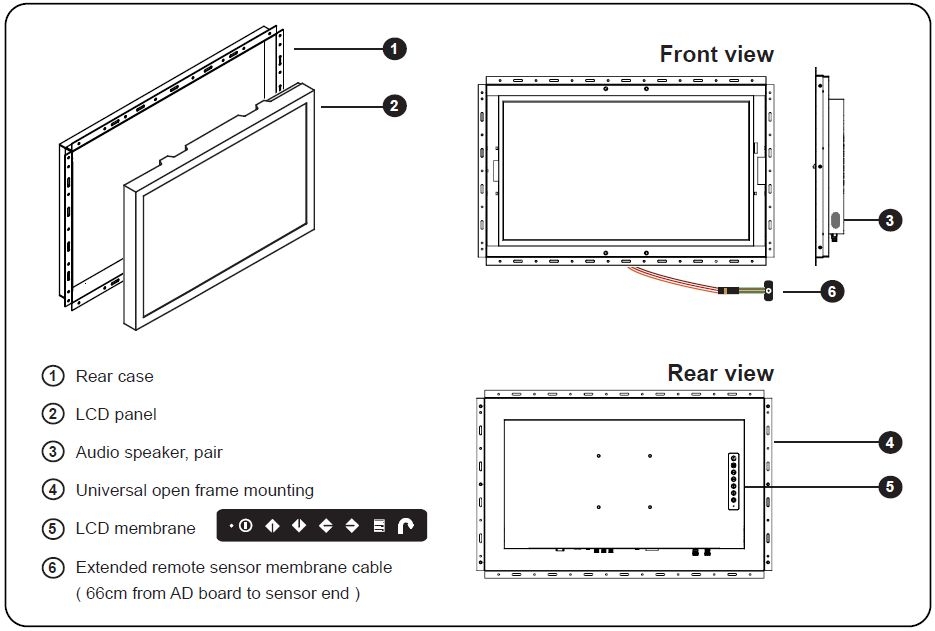

21" High Resolution Open Frame Industrial LCD Features

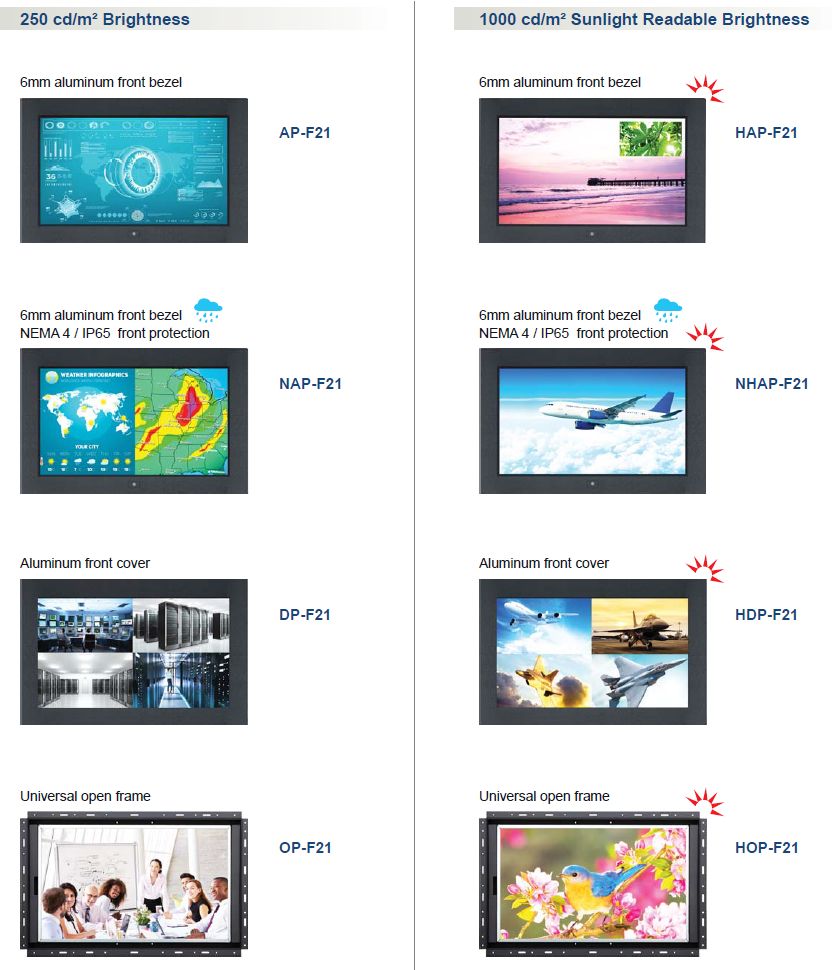

Industrial LCD Panel Options -
- Video Input: BNC & S-Video + Audio + Remote Controller
- Screen Protection:Protective Glass
- Broadcast: 3G / HD / SD-SDI Broadcast-grade input
- Multi-Display: Multi-display control
- Power:12VDC, 24VDC, 48VDC
- Touchscreen: Resistive or Capacitive
- Connector:Lockable DC Jack, Lockable USB Jack
- MIL-type Connector:MIL-type DC lockable jack, MIL-type VGA lockable jack
