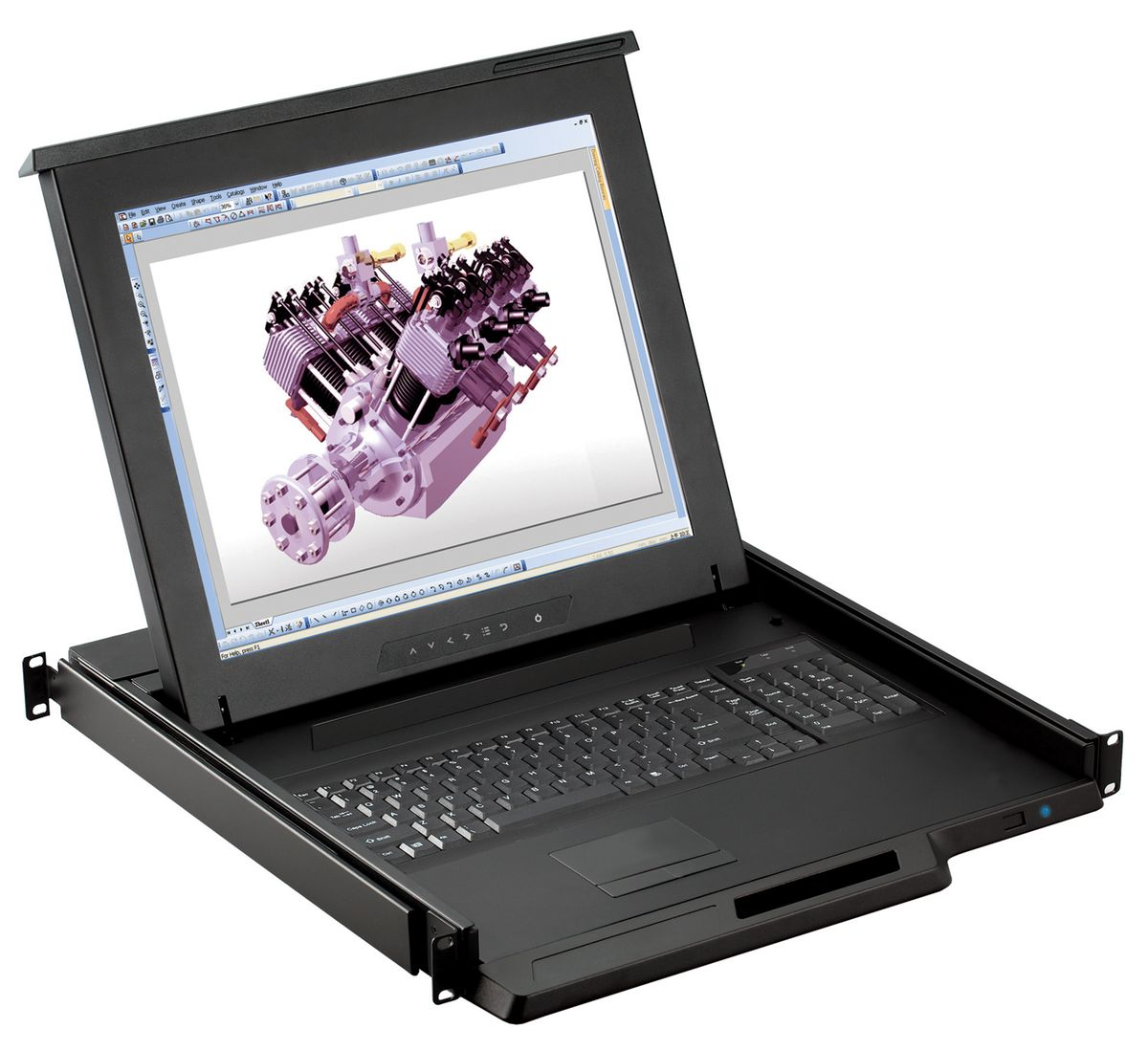

1U 19" Short Depth (18.9") Rackmount Monitor, Touchpad or Trackball - UL Certified (Part#RM-111-19SD)

$887.00
SKU
RM-111-19SD
External Power
More Information
Product Specification

Product Specification

Console Port
Video input VGA
KB/MS Combo(USB or PS2)
VGA console 6ft cable : CB-6 Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Video Option
Digital DVI DVI-D single link
HDMI HDMI 1.2 / HDCP 1.1
Analog S-Video ( 4-pin ) NTSC & PAL
Composite ( BNC ) NTSC & PAL
LCD PanelRM-111-17SDRM-111-19SD
Panel size ( diagonal ) 17" 19"
Native resolution 1280 x 1024 1280 x 1024
Brightness ( cd/m² ) 250 250
Contrast ratio ( typ. ) 1000 : 1 1000 : 1
Colors 16.7 M 16.7 M
Viewing angle ( L/R/U/D ) 85/85/80/80 85/85/80/80
Panel Response time ( ms ) 5 5
Dot pitch ( mm ) 0.264 0.294
Display area ( mm ) 337.92H x 270.33V 376.32H x 270.33V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
Backlight type LED
MTBF (hrs) 30,000
Audio Option
Input Connector 3.5mm stereo jack
Impedance /
Power level
30kQ / 750mV
Output Connector 3.5mm stereo jack
Resistance /
Power level
30kQ / 2.8V
Speaker Dual stereo 2W x 2
Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
(console / KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
PhysicalRM-111-17SDRM-111-19SD
Product
( W x D x H )
Single console 442 x 440 x 44 mm
17.4 x 17.3 x 1.73 inch
442 x 480 x 44 mm
17.4 x 18.9 x 1.73 inch
Console w/ KVM 442 x 580 x 44 mm
17.4 x 22.8 x 1.73 inch
442 x 620 x 44 mm
17.4 x 24.4 x 1.73 inch
Packing
( W x D x H )
Single console /
Console w/ KVM
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch
590 x 808 x 140 mm
23.2 x 31.8 x 5.5 inch
Net
weight
Single console 12 kg / 26.4 lb 12.7 kg / 27.9 lb
Console w/ KVM 13 kg / 28.6 lb 13.7 kg / 30.1 lb
Gross
weight
Single console 16.6 kg / 36.5 lb 17.3 kg / 38.1 lb
Console w/ KVM 19 kg / 41.8 lb 19.7 kg / 43.3 lb
Environment
Operating temp. -20 to 65°C degree
Strorage temp -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating alttiude 16,000 ft
Non-operating attude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration
Mounting DistanceRM-111-17RM-111-19
Single console drawer 470 ~ 700 mm
18.5 ~ 27.6 inch
510 ~ 740 mm
20.1 ~ 29.1 inch
Console w/ KVM drawer 470 ~ 800 mm
18.5 ~ 31.5 inch
510 ~ 840 mm
20.1 ~ 33.1 inch
Compliance
EMC FCC, CE & CCC certified
Safety c UL us, CE / LVD & CCC certified
Environment RoHS2 & REACH compliant
Features Rackmount Monitor Features

1) LCD interchangeable module kit 6) Keyboard interchangeable module kit
2) Installation Slides 7) Mouse Interchangeable module kit
3) LCD Membrane 8) Blue Power LED
4) Membrane switch (KVM Option) 9) Front USB port for device access (USB Hub KVM)
5) Micro switch for screen auto power off 10) Rugged LCD front handle
