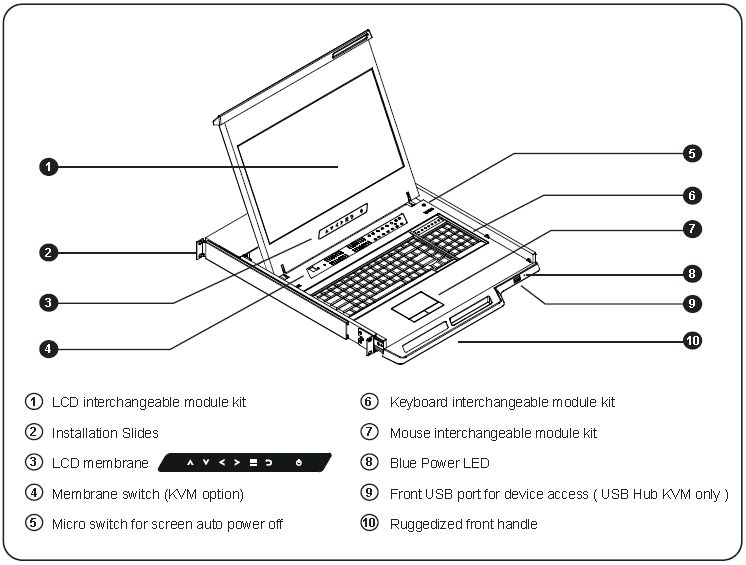

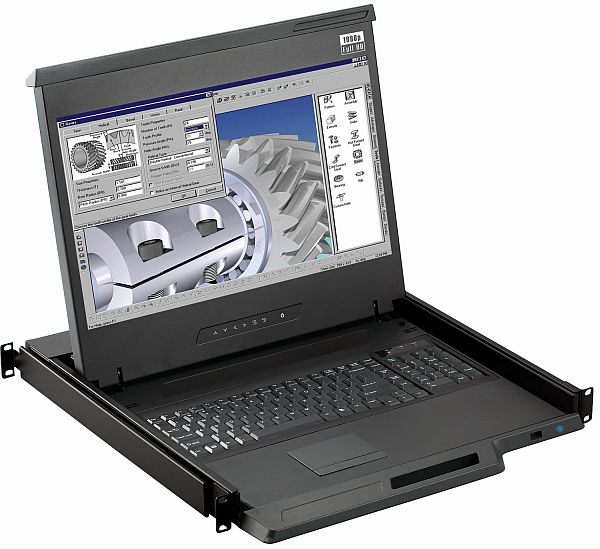

High Resolution Rack Mounted Monitor and Keyboard Features
- 1U 17" 1920 X 1080 LCD Drawer w/VGA, DVI-D
- 104 Key Notebook Keyboard with Touchpad or Trackball Mouse
- Rack Mount Monitor Chassis Depth 18.9"
- 2 Post Relay Rack Mounting Available
- PIP & Picture by Picture viewing efficency
- Front USB port for peripherals (with USB HUB KVM Switch)
- Video: 3G / HD / SD-SDI Broadcast Grade Input, Or HDMI w/speaker
- Audio: Add integrated speakers for VGA & DVI-D
- Keyboard: MAC Keyboard or SUN Keyboard
- Power: 12VDC, 24VDC, 48VDC
- Touchscreen: No Touchscreen -
Rackmount Monitor User Manual
Reviews
Write Your Own Review
Tags
Product Specification
| Console Port | |
|---|---|
| Video input | VGA + DVI-D single link |
| Keyboard and Mouse | USB 2.0 Keyboard & Mouse |

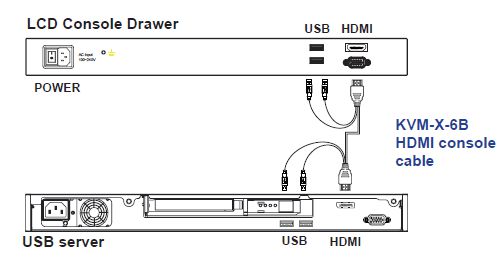

| DVI console - 6ft cable : or VGA console - 6ft cable : | Drawer end : DB-15(VGA + USB KB/MS) server end: VGA + USB type A |
| Drawer end : DVI- D + DB-15(USB KB/MS) server end: DVI- D + USB type A | |
| Video Option | ||
|---|---|---|
| Digital | HDMI | HDMI 1.3 / HDCP 1.1 |
| LCD Panel | |
|---|---|
| Panel Size (diagonal) | 17.3" |
| Native resolution | 1920 x 1080 |
| Brightness(cd/m²) | 400 |
| Contrast ratio (typ.) | 600:1 |
| Max Color | 16.7 M, 8-bit |
| Contrast angle(L/R/U/D) | 80/80/60/80 |
| Responsive time(ms) | 40 |
| Dot pitch (mm) | 0.1989 |
| Display area (mm) | 381.888H x 214.812V |
| Surface treatment | Anti- glare. Hard-coating |
| Surface hardness | 3H |
| Backlight type | LED |
| MTBF(hrs) | 50,000 |
| Power | ||
|---|---|---|
| Input | Input Auto-sensing 100 to 240 VAC, 50/60Hz | |
| Consumption (console / K/M) | Screen on | Max. 29W / Max. 38W |
| Power saving mode | Max. 9W / Max. 18W | |
| Power button on | Max. 2W / Nil | |

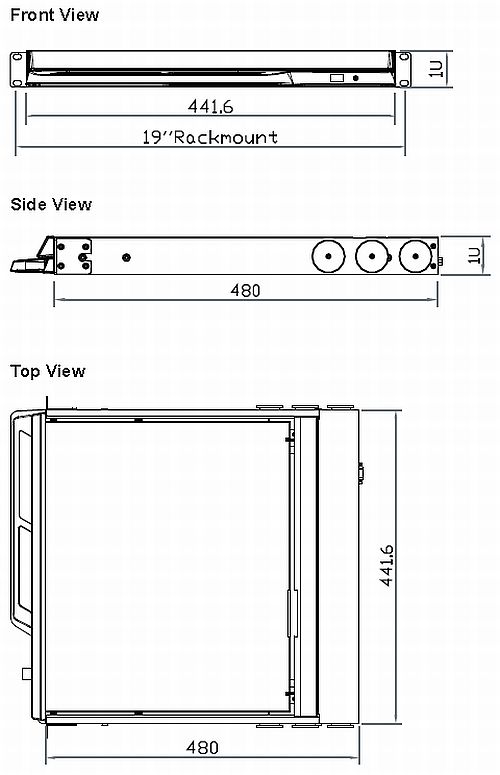

| Physical | ||
|---|---|---|
| Product (W x D X H) | Single console | 442 x 460 x 44mm 17.4 x 18.1 x 1.73 inch |
| Console W/ KVM | 442 x 580 x 44mm 17.4 x 22.8 x 1.73 | |
| Packing (W x D X H) | Single console/ Console W/ KVM | 590 x 808 x 140mm 23.2 x 31.8 x 5.5 inch |
| Net weight | Single console | 10.8 kg / 23.8 lb |
| Console W/ KVM | 11.6 kg / 25.5 lb | |
| Gross weight | Single console | 15.8kg / 34.8 lb |
| Console W/ KVM | 17.5 kg / 38.5 lb | |
| Environment | |
|---|---|
| Operating temp. | 0 to 55°C degree |
| Strorage temp | -20 to 60°C degree |
| Operating humidity | 20~90%, non-condensing |
| Storage humidity | 5 ~90%, non-condensing |
| Operating alttiude | 16,000 ft |
| Non-operating attude | 40,000 ft |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 10~300Hz .5G RMS randon vibration |
| Mounting Distance | |
|---|---|
| Single console drawer | 470 ~ 700 mm 18.5 ~ 27.6 inch |
| Console W/ KVM drawer | 470 ~ 800mm |
| Compliance | |
|---|---|
| EMC | FCC & CE certifiled |
| Safety | CE/ LVD certified |
| Environment | RoHS2 & REACH compliant |
