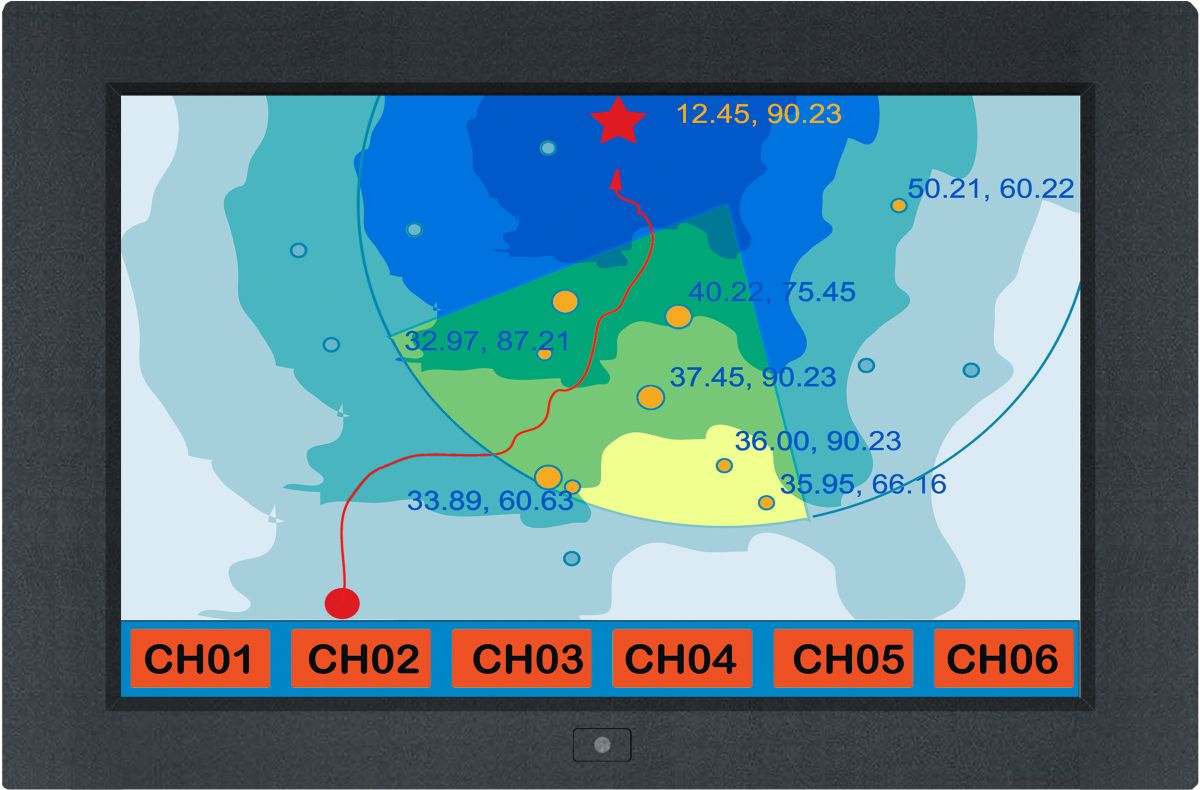

19" Rugged Aluminum Frame, 1440 X 900 - Industrial LCD Panel (Part# LCD-AP-W19)

Special Price $858.00 Regular Price $1,072.50

SKU

LCD-AP-W19

VGA & DVI-D Input - Optional BNC & S-Video + Audio + HDMI
3MM Protective Glass - Optional NEMA4/IP65 LED Display Panel
Optional - Resistive or 10 Point MultTouch Capacitive Touchscreen
Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 12VDC / 24VDC / 48VDC / 125VDC

More Information

Product Specification

LCD Panel Video Specs
Video input	VGA + DVI-D single link

Video Option
Digital / Analog	HDMI / SDI / Composite	HDMI 1.2 3G / HD / SD-SDI Broadcast Grade Input S-Video (4-pin) + Composite (BNC) NTSC & PAL

LCD Panel
Panel Size (diagonal)	19"
Native resolution	1440 x 900
Brightness(cd/m²)	250
Contrast ratio (typ.)	1000:1
Max Color	16.7 M
Contrast angle(L/R/U/D)	85/85/80/80
Responsive time(ms)	5
Dot pitch (mm)	0.2835
Display area (mm)	408.24H x 255.15V
Surface treatment	Anti-glare
Surface hardness	3H
Backlight type	LED
MTBF(hrs)	30,000

Power
Input	Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)	Screen on	Max. 25W
	Power saving mode	Max. 4W
	Power button on	Max. 1W

Physical LCD Frame

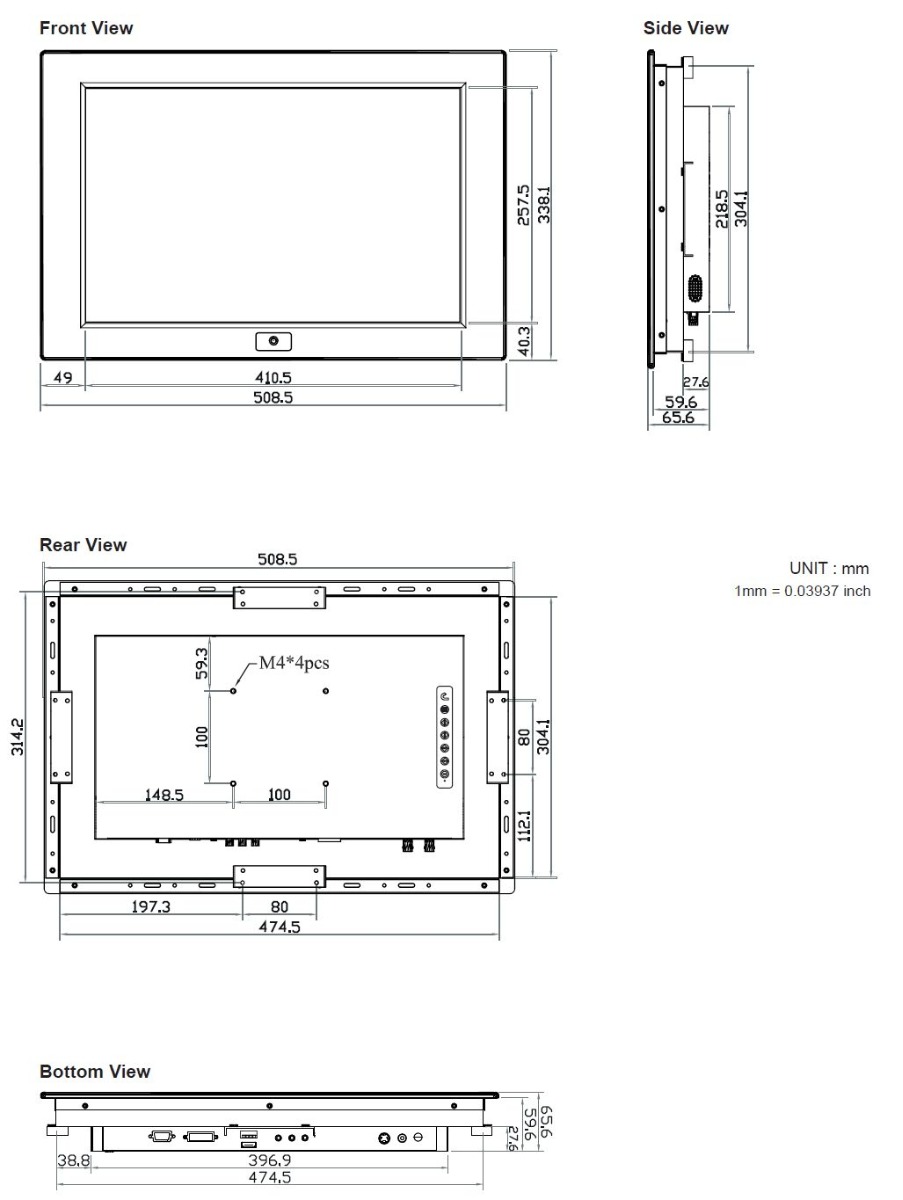

Product (W x D X H)	Millimeters	476.5 x 63.6 x 384.1mm
Product (W x D X H)	Inches	18.8 X 2.5 X 15.1 inch
Packing (W x D X H)	Millimeters Inches	651 x 124 x 597mm 25.6 x 4.9 x 23.5 inch
Net weight	KGs	7.7 kg
Net weight	LBS	16.9 lb
Gross weight	KGs	10.5 kg
Gross weight	LBS	23.1 lb

Environment
Operating temp.	0 to 55°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	10~300Hz .5G RMS randon vibration

Compliance
EMC	FCC & CE certifiled
Safety	CE/ LVD certified
Environment	RoHS2 & REACH compliant

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Industrial LCD Power Options

Industrial LCD Touch Screen Options

Video Options

Warranty

Qty

Add to Wish List Add to Compare

Details

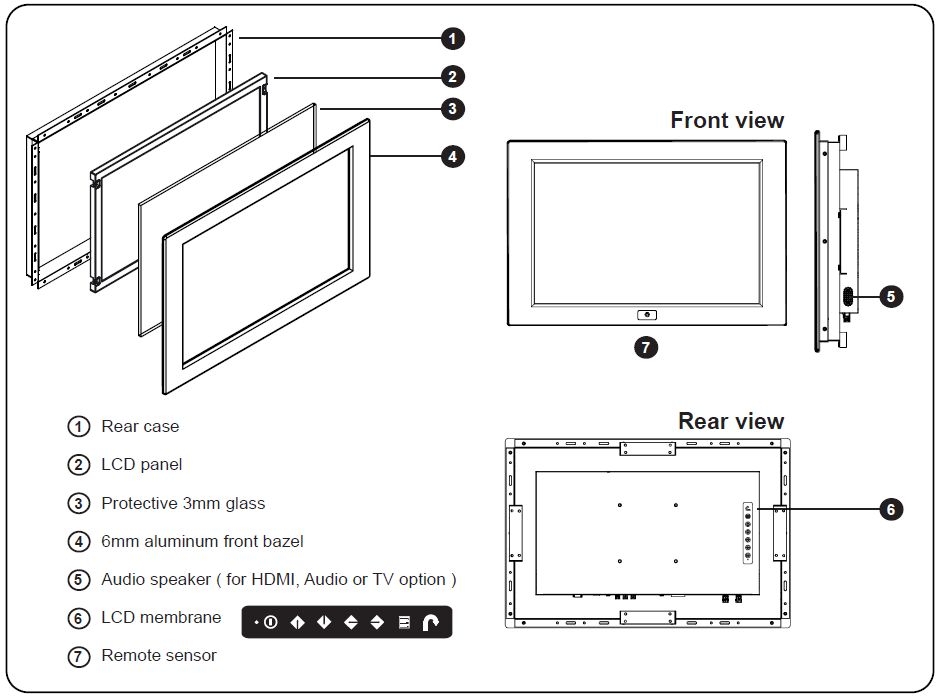

19" Wide Screen LCD Panel Features -

19" Wide Screen LCD 1440 X 900 native resolution
Standard with DVI-D and VGA
Rugged 6mm Aluminum Frame with protective glass
100mm X 100mm VESA Mounting Pattern & Perimeter Mounting Brackets

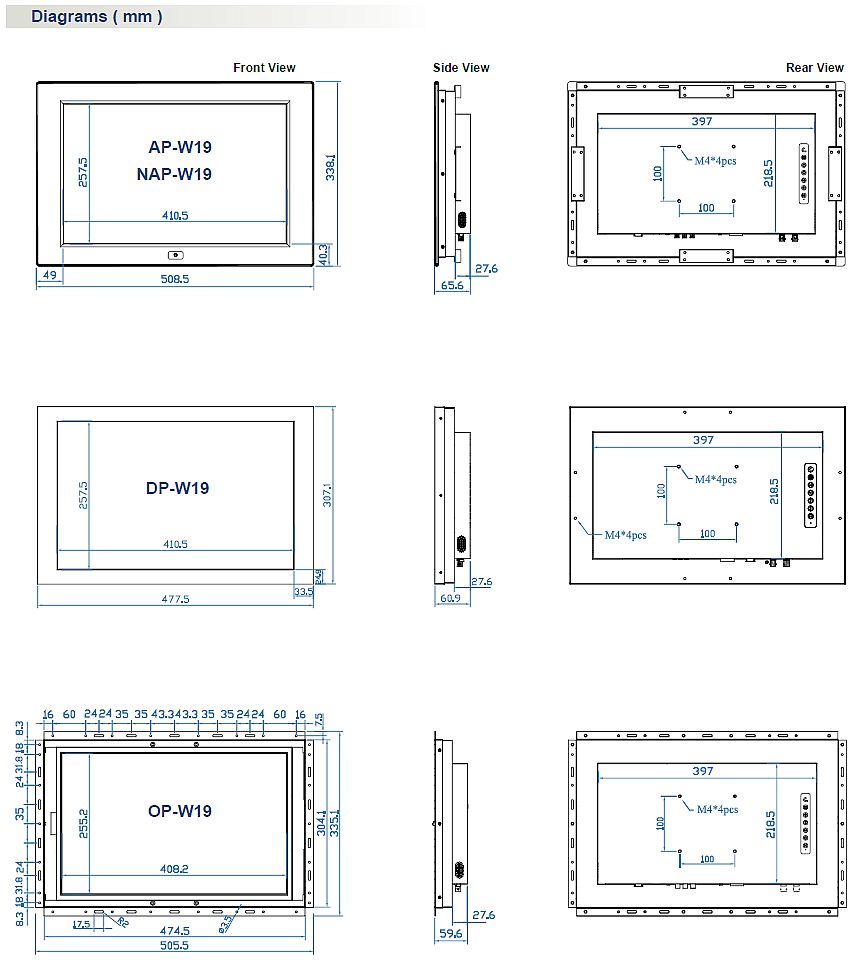

Dimensions: 20" X 2.6" X 13.3"
Select Industrial LCD Specifications to view more details
Industrial LCD Wide Screen Resolution Options -
Video Options : HDMI, DVI-D, S-Video + BNC
Audio - Add Integrated Speakers
DC Power Option: 12V : 24V : 48V
Touchscreen - Resistive or Capacitive touch screen with USB Controller

Downloads -

Industrial LCD Panel Specification

Industrial LCD Panel User Manual

More Information

Product Specification

LCD Panel Video Specs
Video input	VGA + DVI-D single link

Video Option
Digital / Analog	HDMI / SDI / Composite	HDMI 1.2 3G / HD / SD-SDI Broadcast Grade Input S-Video (4-pin) + Composite (BNC) NTSC & PAL

LCD Panel
Panel Size (diagonal)	19"
Native resolution	1440 x 900
Brightness(cd/m²)	250
Contrast ratio (typ.)	1000:1
Max Color	16.7 M
Contrast angle(L/R/U/D)	85/85/80/80
Responsive time(ms)	5
Dot pitch (mm)	0.2835
Display area (mm)	408.24H x 255.15V
Surface treatment	Anti-glare
Surface hardness	3H
Backlight type	LED
MTBF(hrs)	30,000

Power
Input	Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)	Screen on	Max. 25W
	Power saving mode	Max. 4W
	Power button on	Max. 1W

Physical LCD Frame
Product (W x D X H)	Millimeters	476.5 x 63.6 x 384.1mm
Product (W x D X H)	Inches	18.8 X 2.5 X 15.1 inch
Packing (W x D X H)	Millimeters Inches	651 x 124 x 597mm 25.6 x 4.9 x 23.5 inch
Net weight	KGs	7.7 kg
Net weight	LBS	16.9 lb
Gross weight	KGs	10.5 kg
Gross weight	LBS	23.1 lb

Environment
Operating temp.	0 to 55°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	10~300Hz .5G RMS randon vibration

Compliance
EMC	FCC & CE certifiled
Safety	CE/ LVD certified
Environment	RoHS2 & REACH compliant
