Description
Details

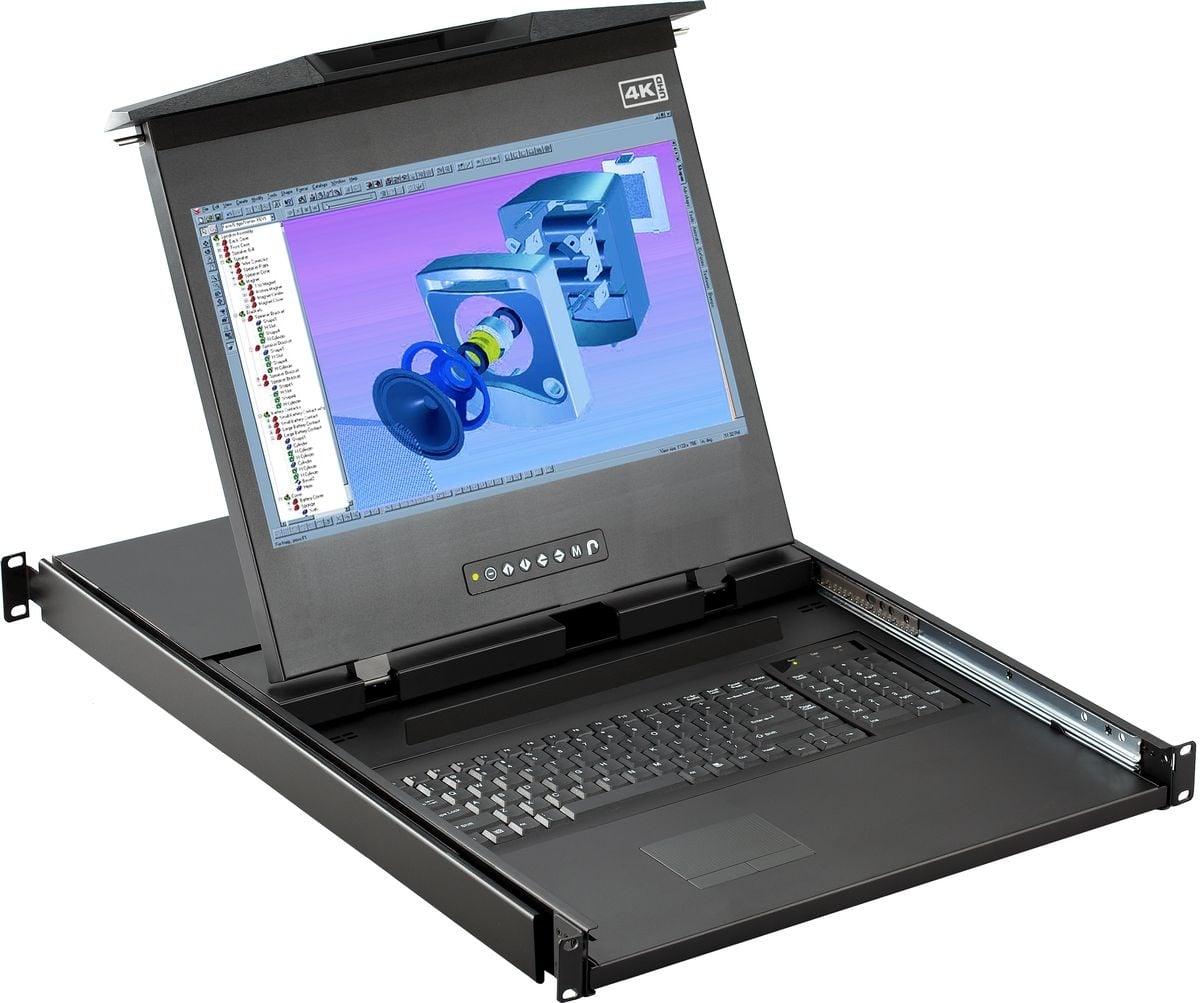

4K Dual Slide Rack Mount Monitor Features
- 1U 17" 3840 X 2160 Native Resolution - Display Port 1.2 Input
- 1920 X 1200 & 1920 X 1080 resolution support
- 104 Key Notebook Keyboard with Touchpad Mouse
- Rack Mount Monitor Chassis Depth 25.6" (Mounting Range 26" to 34.3")
- 2 Post Relay Rack Mounting Available
- Built In Dual Stereo Speakers
- 2 Point Locking Handle for secure mobile applications
- Video: 3G / HD / SD-SDI Broadcast Grade Input
- HDMI 1.4 VIdeo Input
- Resistive or 10 Point Capacitive Touch Screen
- USB front Accessory HUB
- Extension Brackets for deeper mounting depths
- Keyboard: MAC Keyboard or SUN Keyboard
- Power: 12VDC, 24VDC, 48VDC, 125V
Rackmount Monitor User Manual
Reviews
Write Your Own Review
Tags

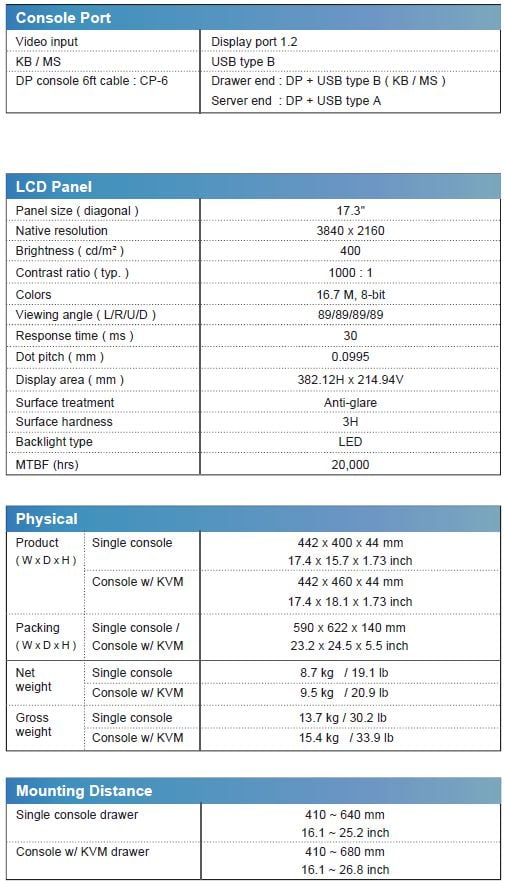

Product Specification
| Console Port | |
|---|---|
| Video input | Display port 1.2 |
| Keyboard and Mouse | USB Type B Keyboard & Mouse |

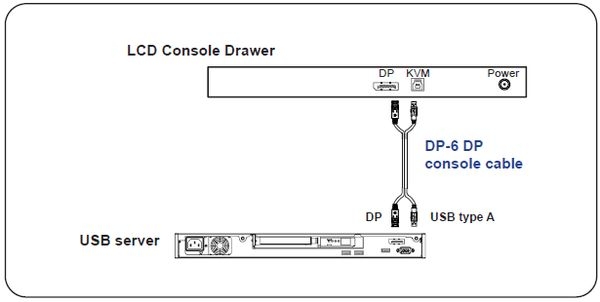

| DP console - 6ft cable : CP-6 : | |
| Drawer end : DP + USB type B ( KB/MS ) Server end: DP + USB type A | |
| Video Option | ||
|---|---|---|
| Digital | HDMI | HDMI 1.4 / HDCP 1.4 |
| LCD Panel | |
|---|---|
| Panel Size (diagonal) | 17.3" |
| Native resolution | 3840 x 2160 |
| Brightness(cd/m²) | 400 |
| Contrast ratio (typ.) | 1000:1 |
| Max Color | 16.7 M, 8-bit |
| Contrast angle(L/R/U/D) | 89/89/89/89 |
| Responsive time(ms) | 30 |
| Dot pitch (mm) | 0.0995 |
| Display area (mm) | 382.12H x 214.94V |
| Surface treatment | Anti- glare |
| Surface hardness | 3H |
| Backlight type | LED |
| MTBF(hrs) | 20,000 |

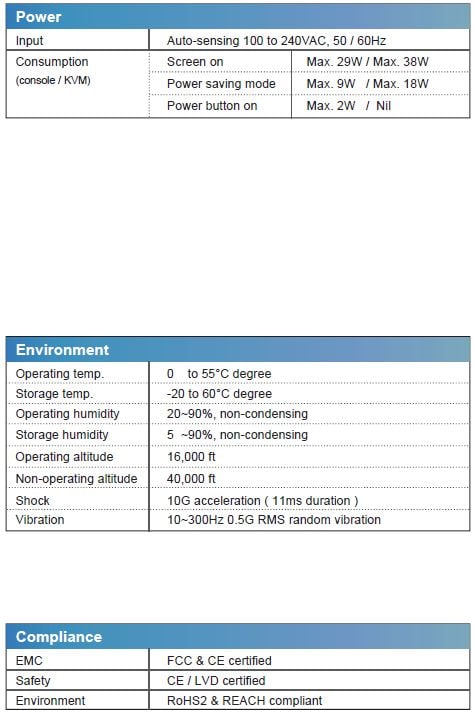

| Power | ||
|---|---|---|
| Input | Input Auto-sensing 100 to 240 VAC, 50/60Hz | |
| Consumption (console / K/M) | Screen on | Max. 29W / Max. 38W |
| Power saving mode | Max. 9W / Max. 18W | |
| Power button on | Max. 2W / Nil | |
| Physical | ||
|---|---|---|
| Product (W x D X H) | Single console | 442 x 650 x 44mm 17.4 x 25.6 x 1.73 inch |
| Console W/ KVM | 442 x 650 x 44mm 17.4 x 25.6 x 1.73 | |
| Packing (W x D X H) | Single console/ Console W/ KVM | 595 x 860 x 140mm 23.4 x 33.9 x 5.5 inch |
| Net weight | Single console | 12 kg / 26.4 lb |
| Console W/ KVM | 13 kg / 28.6 lb | |
| Gross weight | Single console | 18 kg / 39.6 lb |
| Console W/ KVM | 19 kg / 41.8 lb | |
| Environment | |
|---|---|
| Operating temp. | 0 to 55°C degree |
| Strorage temp | -20 to 60°C degree |
| Operating humidity | 20~90%, non-condensing |
| Storage humidity | 5 ~90%, non-condensing |
| Operating alttiude | 16,000 ft |
| Non-operating attude | 40,000 ft |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 10~300Hz .5G RMS randon vibration |
| Mounting Distance | |
|---|---|
| Single console drawer | 660 ~ 870 mm |
| Console W/ KVM drawer | 660 ~ 870 mm |
| Compliance | |
|---|---|
| EMC | FCC & CE certifiled |
| Safety | CE/ LVD certified |
| Environment | RoHS2 & REACH compliant |
