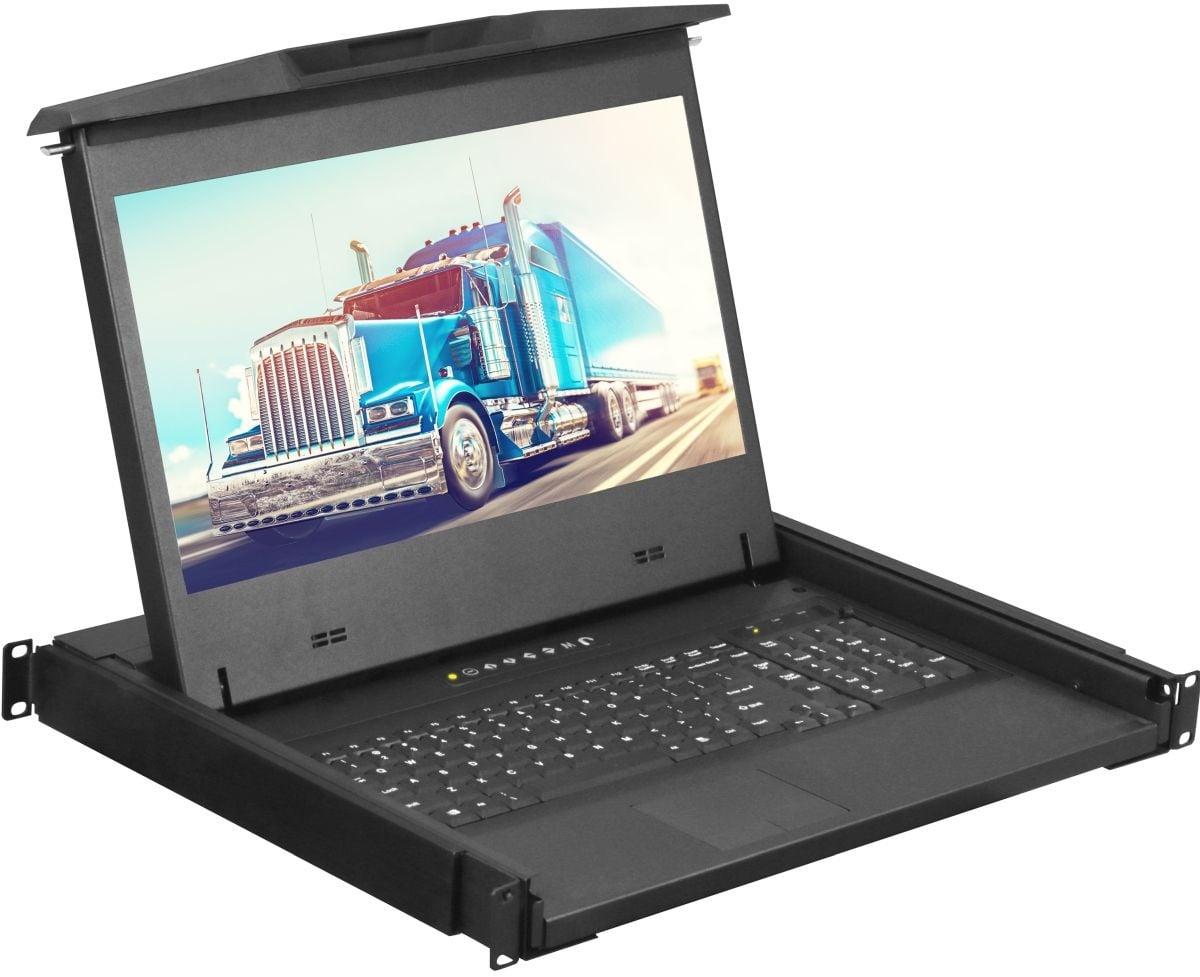

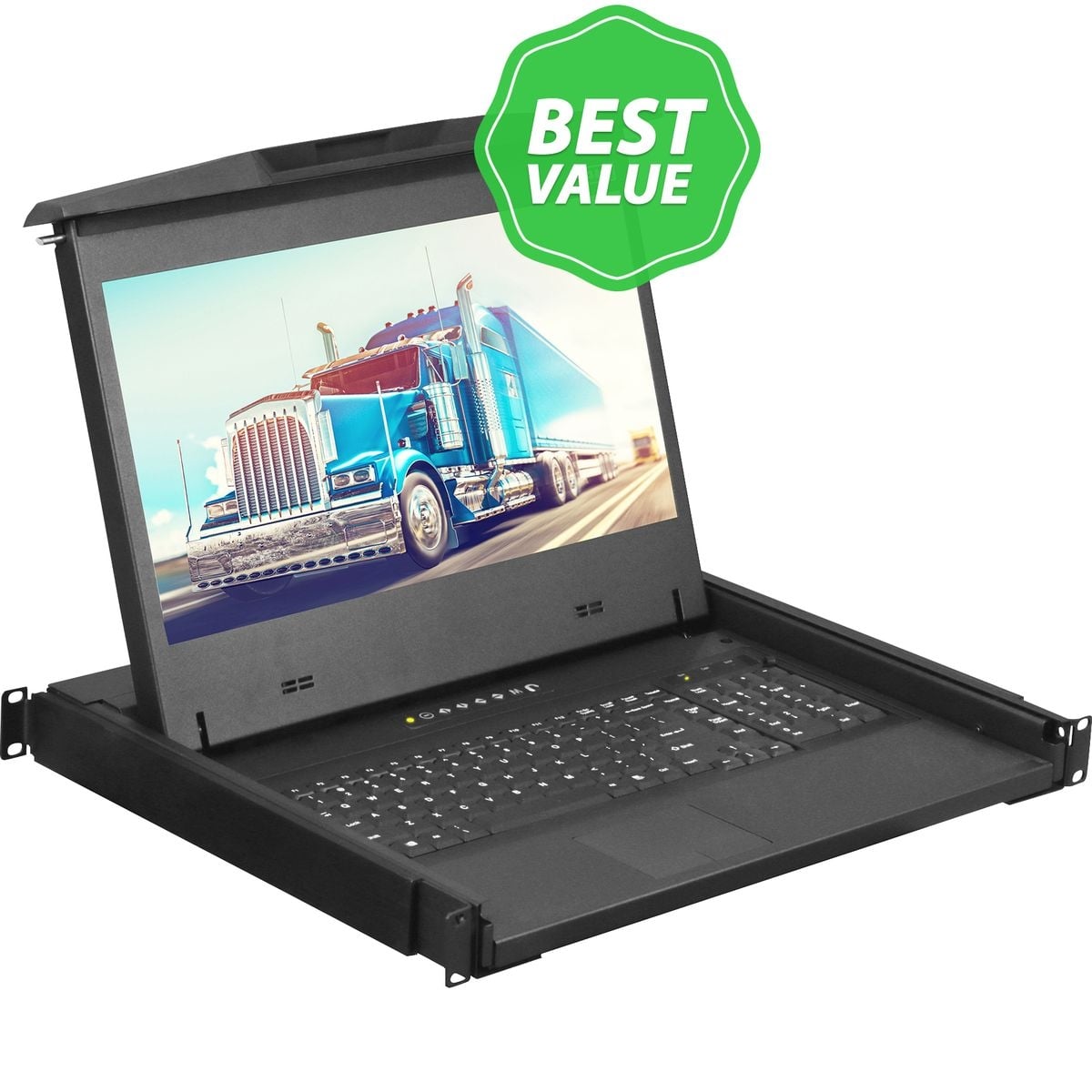

1U 17" 1920 X 1080 Short Depth Rackmount Monitor VGA & DVI Input - (Part#RM-F17USD)

Special Price $1,043.00 Regular Price $1,097.00

SKU

RM-F17USD

1920 X 1080 Resolution with VGA & DVI Input

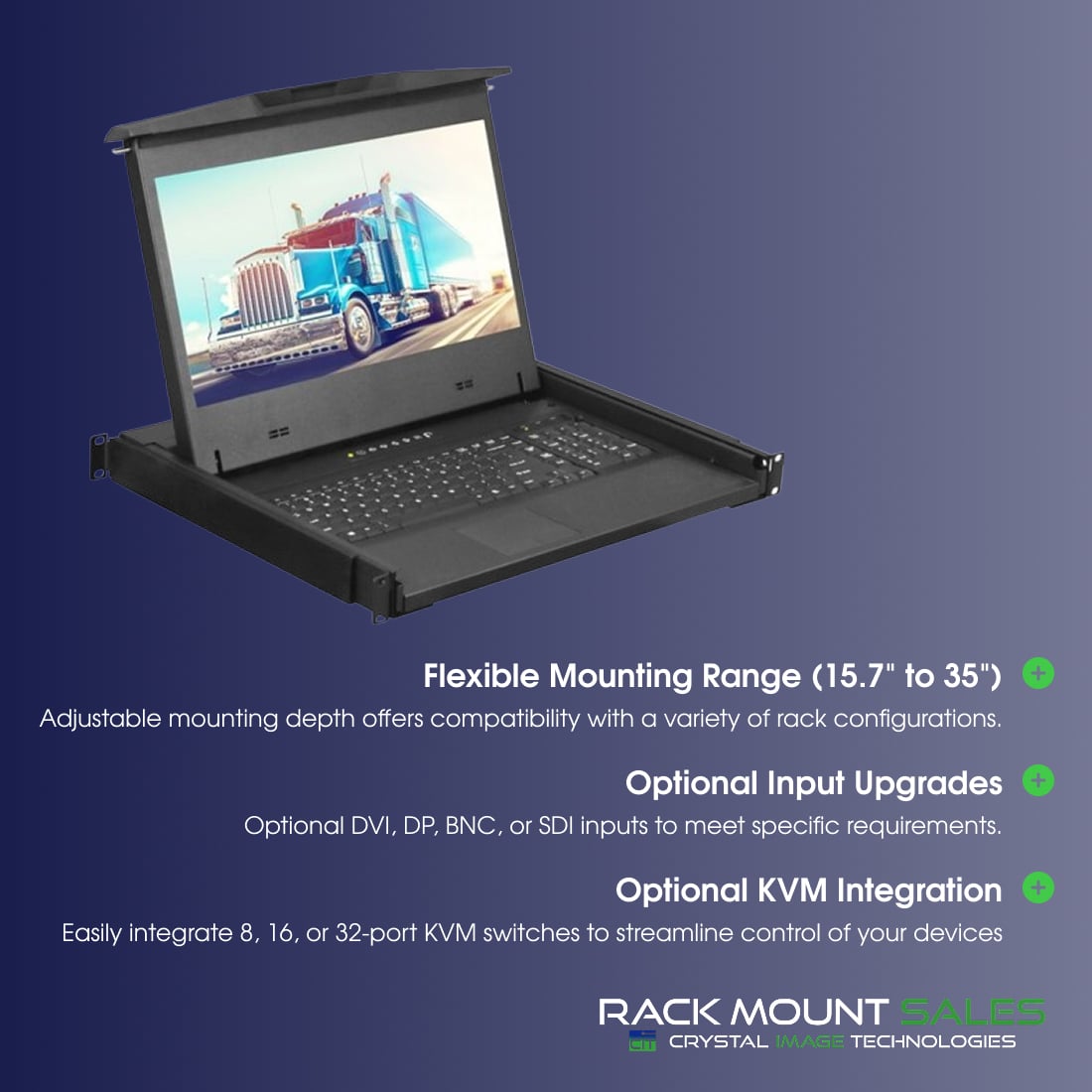

Flexible mounting range from 15.7" to 35" depth
Integrate an 8, 16, or 32 port KVM SWITCH
Optional - Add HDMI 1.3 or SDI Input
TAA Compliant - Assembled in Hong Kong

More Information

Product Specification

Console Port
Video input	VGA + DVI-D single link
Keyboard and Mouse	USB 2.0 Keyboard & Mouse
DVI console - 6ft cable : or VGA console - 6ft cable :	Drawer end : DB-15(VGA + USB KB/MS) server end: VGA + USB type A
DVI console - 6ft cable : or VGA console - 6ft cable :	Drawer end : DVI- D + DB-15(USB KB/MS) server end: DVI- D + USB type A

Video Option
Digital	HDMI	HDMI 1.3 / HDCP 1.1

LCD Panel
Panel Size (diagonal)	17.3"
Native resolution	1920 x 1080
Brightness(cd/m²)	400
Contrast ratio (typ.)	600:1
Max Color	16.7 M, 8-bit
Contrast angle(L/R/U/D)	80/80/60/80
Responsive time(ms)	40
Dot pitch (mm)	0.1989
Display area (mm)	381.888H x 214.812V
Surface treatment	Anti- glare. Hard-coating
Surface hardness	3H
Backlight type	LED
MTBF(hrs)	50,000

Power
Input	Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)	Screen on	Max. 29W / Max. 38W
	Power saving mode	Max. 9W / Max. 18W
	Power button on	Max. 2W / Nil

Physical
Product (W x D X H)	Single console	442 x 400 x 44mm 17.4 x 15.7 x 1.73 inch
Product (W x D X H)	Console W/ KVM	442 x 540 x 44mm 17.4 x 21.3 x 1.73
Packing (W x D X H)	Single console/ Console W/ KVM	590 x 622 x 140mm 23.2 x 24.5 x 5.5 inch
Net weight	Single console	8.6 kg / 18.9 lb
Net weight	Console W/ KVM	10.4 kg / 22.9 lb
Gross weight	Single console	13.6kg / 29.9 lb
Gross weight	Console W/ KVM	16.3 kg / 35.9 lb

Environment
Operating temp.	0 to 55°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	10~300Hz .5G RMS randon vibration

Mounting Distance
Single console drawer	410 ~ 640 mm 16.1 ~ 25.2 inch
Console W/ KVM drawer	410 ~ 680mm 16.1 ~ 26.8 inch

Compliance
EMC	FCC & CE certifiled
Safety	CE/ LVD certified
Environment	RoHS2 & REACH compliant

Features

Rackmount Monitor Features

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Keyboard Options

Video Cable Type

Video Options

Mounting Depth Options

Power Supply Options

Touch Screen Options

Warranty

Qty

Add to Wish List Add to Compare

Details

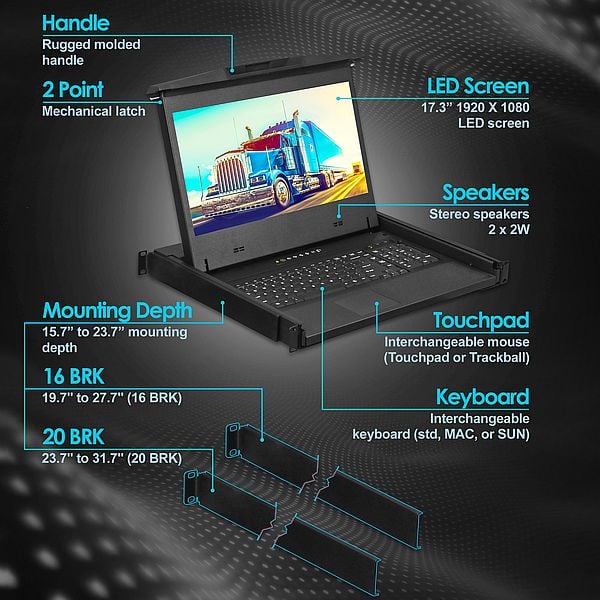

High Resolution Ultra Short Depth Rack Mounted Monitor Features

1U 17.3" 1920 X 1080 LCD Drawer with VGA, DVI-D video input
Wide Mounting Range - 15.7" to 35" Mounting Depth
104 Key Notebook Keyboard with Touchpad or Trackball Mouse
2 Point Secure Locking Front Handle
2 Post Relay Rack Mounting Available
Integrate an 8, 16, or 32 port KVM Switch
ORDER KVM SWITCH DONGLES (VGA / DVI / HDMI & Display Port)

Options -

Video: 3G / HD / SD-SDI Broadcast Grade Input, Or HDMI w/speaker (18.5" Chassis Depth)
Mounting Brackets - Select mounting brackets that meet your needs - 15.7" to 35" Rail Depth
Keyboard: Standard, MAC Keyboard or SUN Keyboard
Power: 12VDC, 24VDC, 48VDC, 125VDV (18.5" Chassis Depth)
Add a Cat5 / Cat6 KVM Switch with 8, 16, or 32 Ports (18.5" Chassis Depth)

Download Rackmount Monitor Info-

Rackmount Monitor Specifications
Rackmout Monitor User Manual

Rackmount Monitor User Manual

Download Cat5 KVM Switch Info-

KVM Switch Specifications

KVM Switch User Manual

More Information

Product Specification

Console Port
Video input	VGA + DVI-D single link
Keyboard and Mouse	USB 2.0 Keyboard & Mouse
DVI console - 6ft cable : or VGA console - 6ft cable :	Drawer end : DB-15(VGA + USB KB/MS) server end: VGA + USB type A
DVI console - 6ft cable : or VGA console - 6ft cable :	Drawer end : DVI- D + DB-15(USB KB/MS) server end: DVI- D + USB type A

Video Option
Digital	HDMI	HDMI 1.3 / HDCP 1.1

LCD Panel
Panel Size (diagonal)	17.3"
Native resolution	1920 x 1080
Brightness(cd/m²)	400
Contrast ratio (typ.)	600:1
Max Color	16.7 M, 8-bit
Contrast angle(L/R/U/D)	80/80/60/80
Responsive time(ms)	40
Dot pitch (mm)	0.1989
Display area (mm)	381.888H x 214.812V
Surface treatment	Anti- glare. Hard-coating
Surface hardness	3H
Backlight type	LED
MTBF(hrs)	50,000

Power
Input	Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption (console / K/M)	Screen on	Max. 29W / Max. 38W
	Power saving mode	Max. 9W / Max. 18W
	Power button on	Max. 2W / Nil

Physical
Product (W x D X H)	Single console	442 x 400 x 44mm 17.4 x 15.7 x 1.73 inch
Product (W x D X H)	Console W/ KVM	442 x 540 x 44mm 17.4 x 21.3 x 1.73
Packing (W x D X H)	Single console/ Console W/ KVM	590 x 622 x 140mm 23.2 x 24.5 x 5.5 inch
Net weight	Single console	8.6 kg / 18.9 lb
Net weight	Console W/ KVM	10.4 kg / 22.9 lb
Gross weight	Single console	13.6kg / 29.9 lb
Gross weight	Console W/ KVM	16.3 kg / 35.9 lb

Environment
Operating temp.	0 to 55°C degree
Strorage temp	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating alttiude	16,000 ft
Non-operating attude	40,000 ft
Shock	10G acceleration (11ms duration)
Vibration	10~300Hz .5G RMS randon vibration

Mounting Distance
Single console drawer	410 ~ 640 mm 16.1 ~ 25.2 inch
Console W/ KVM drawer	410 ~ 680mm 16.1 ~ 26.8 inch

Compliance
EMC	FCC & CE certifiled
Safety	CE/ LVD certified
Environment	RoHS2 & REACH compliant

Features

Rackmount Monitor Features
