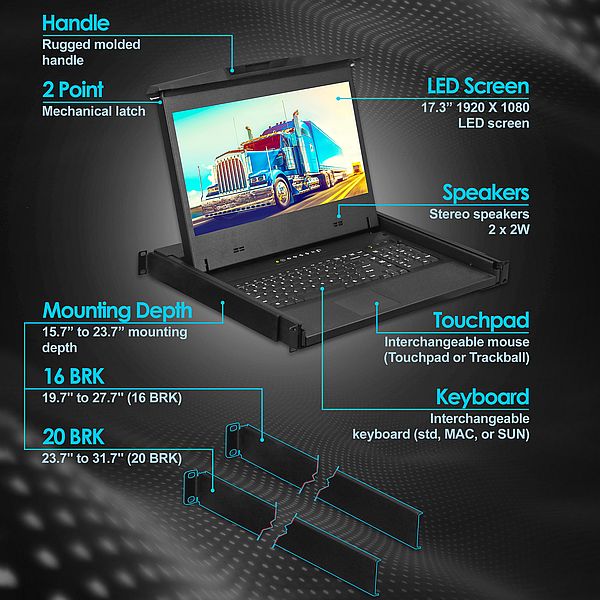

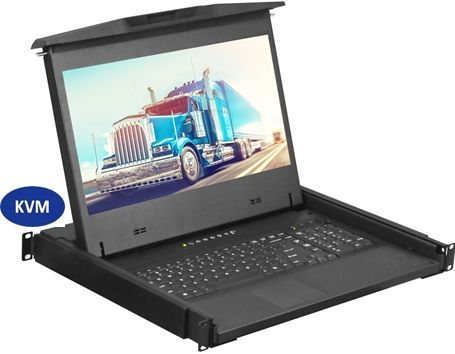

1U 17" 1920 X 1080 Rackmount Monitor with 32 Port Cat5 KVM Switch - (Part#RM-F17USD-Cat5-IP32)

Special Price $2,251.00 Regular Price $2,495.00
SKU
RM-F17USD-Cat5-IP32
  • Rackmount Monitor with 32 Port Cat5e/Cat6 KVM Switch supports 1920 X 1080)

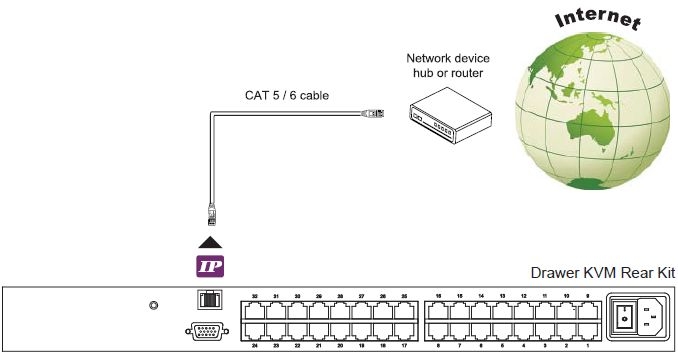

  • KVM Over IP Remote BIOS level access
  • 104 Key Notebook Keyboard, Touchpad or Trackball Mouse
  • Mounting Range - 21.3" to 31.5"





More Information
Product Specification

Product Specification

Console Port
Video input VGA  / DVI / HDMI / Display Port
Keyboard and Mouse USB 2.0 Keyboard & Mouse
DVI console - 6ft cable :  or VGA console - 6ft cable :  Drawer end : DB-15(VGA + USB KB/MS)
server end: VGA + USB type A
Drawer end : DVI- D + DB-15(USB KB/MS)
server end: DVI- D + USB type A
Video Option
Cat5 KVM Switch Dongles - VGA, DVI, HDMI, Display Port
LCD Panel
Panel Size (diagonal) 17.3"
Native resolution 1920 x 1080
Brightness(cd/m²) 400
Contrast ratio (typ.) 600:1
Max Color 16.7 M, 8-bit
Contrast angle(L/R/U/D) 80/80/60/80
Responsive time(ms) 40
Dot pitch (mm) 0.1989
Display area (mm) 381.888H x 214.812V
Surface treatment Anti- glare. Hard-coating
Surface hardness 3H
Backlight type LED
MTBF(hrs) 50,000
Power
Input Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption
(console / K/M)
Screen on Max. 29W / Max. 38W
Power saving mode Max. 9W / Max. 18W
Power button on Max. 2W / Nil
Physical
Product
(W x D X H)
Single console 442 x 460 x 44mm
17.4 x 18.1 x 1.73 inch
Console W/ KVM 442 x 580 x 44mm
17.4 x 22.8 x 1.73
Packing
(W x D X H)
Single console/
Console W/ KVM
590 x 808 x 140mm
23.2 x 31.8 x 5.5 inch
Net
weight
Single console 10.8 kg / 23.8 lb
Console W/ KVM 11.6 kg / 25.5 lb
Gross
weight
Single console 15.8kg / 34.8 lb
Console W/ KVM 17.5 kg / 38.5 lb
Environment
Operating temp. 0 to 55°C degree
Strorage temp -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating alttiude 16,000 ft
Non-operating attude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz .5G RMS randon vibration
Mounting Distance
Single console drawer  NA
Console W/ KVM drawer

541mm ~ 800
21.3 ~ 31.5 inch

Compliance
EMC FCC & CE certifiled
Safety CE/ LVD certified
Environment RoHS2 & REACH compliant
