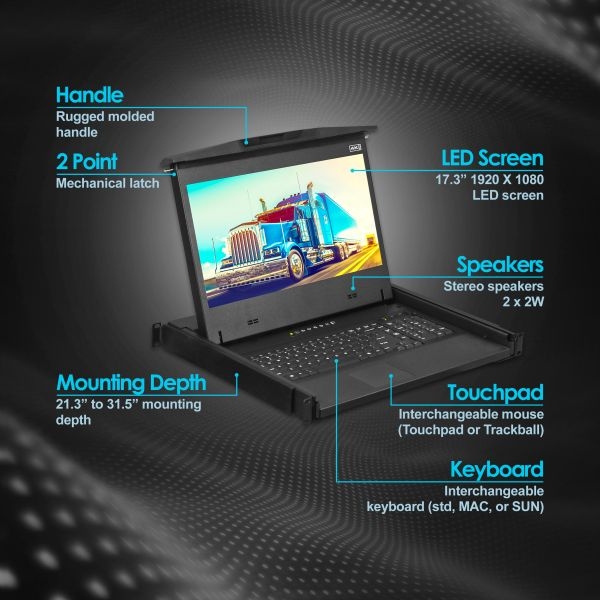

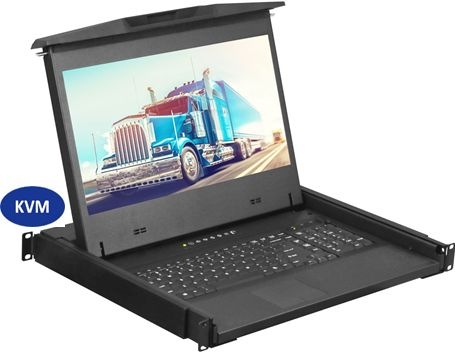

1U 17" 1920 X 1080 Rackmount Monitor with 8 Port Cat5 KVM Switch - (Part#RM-F17USD-Cat5-08)

  • Rackmount Monitor with 8 Port Cat5/Cat6 KVM Switch supports 1920 X 1080)

  • 104 Key Notebook Keyboard, Touchpad or Trackball Mouse

  • Mounting Range - 21.3" to 31.5"


Free Shipping Iconsame day shipping helps you to get your product faster than any other web site, we make sure your products are handled carefully

Regular Price: $1,495.00

Special Price $1,195.00



1920 X 1080 Rack Mounted Monitor 8 Port Cat5 KVM Switch
  • 1U 17" 1920 X 1080 LCD Drawer w/VGA Input
  • 104 Key Notebook Keyboard with Touchpad or Trackball Mouse
  • Rack Mount Monitor Chassis With KVM Switch -  Depth 21.3"
  • 2 Post Relay Rack Mounting Available
  • PIP & Picture by Picture viewing efficency
Options -
  • Audio: Add integrated speakers (3.5mm Audio)
  • Add HDMI 1.3 / 3G / HD / SD-SDI
  • Keyboard: Standard Notebook, MAC Keyboard or SUN Keyboard
  • Power: 12VDC, 24VDC, 48VDC, 125VDC
  • Touchscreen: No Touchscreen -
Download Rackmount Monitor Info-
Rackmount Monitor SpecificationsRackmount Monitor Specifications
Rackmout Monitor User ManualRackmount Monitor User Manual

Download Cat5 KVM Switch Info


Write Your Own Review

You're reviewing: 1U 17" 1920 X 1080 Rackmount Monitor with 8 Port Cat5 KVM Switch - (Part#RM-F17USD-Cat5-08)



Use spaces to separate tags. Use single quotes (') for phrases.

Product Specification

Console Port
Video inputVGA  / DVI / HDMI / Display Port
Keyboard and MouseUSB 2.0 Keyboard & Mouse
DVI console - 6ft cable :  or VGA console - 6ft cable : Drawer end : DB-15(VGA + USB KB/MS)
server end: VGA + USB type A
Drawer end : DVI- D + DB-15(USB KB/MS)
server end: DVI- D + USB type A
Video Option

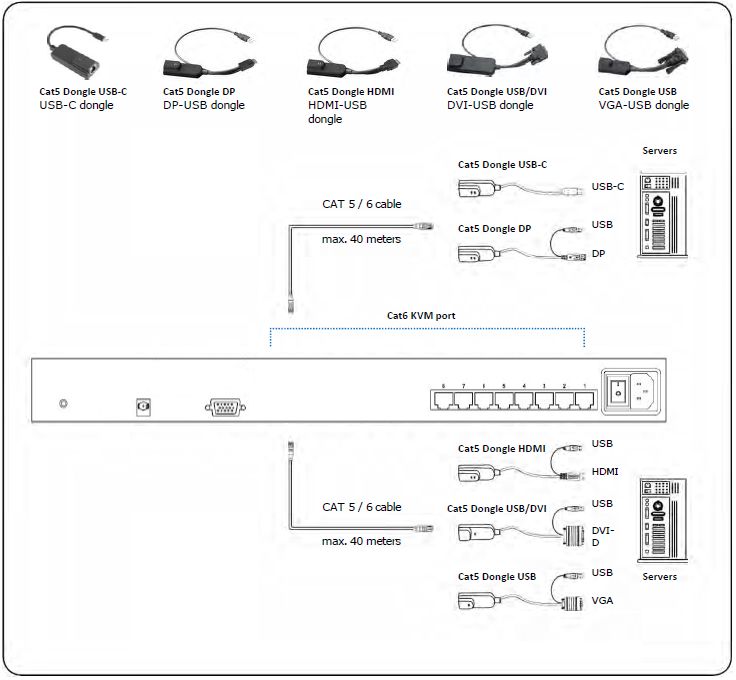

Cat5 KVM Switch Dongles - VGA, DVI, HDMI, Display Port
LCD Panel
Panel Size (diagonal)17.3"
Native resolution1920 x 1080
Contrast ratio (typ.)600:1
Max Color16.7 M, 8-bit
Contrast angle(L/R/U/D)80/80/60/80
Responsive time(ms)40
Dot pitch (mm)0.1989
Display area (mm)381.888H x 214.812V
Surface treatmentAnti- glare. Hard-coating
Surface hardness3H
Backlight typeLED
InputInput Auto-sensing 100 to 240 VAC, 50/60Hz
(console / K/M)
Screen onMax. 29W / Max. 38W
Power saving modeMax. 9W / Max. 18W
Power button onMax. 2W / Nil
(W x D X H)
Single console442 x 460 x 44mm
17.4 x 18.1 x 1.73 inch
Console W/ KVM442 x 580 x 44mm
17.4 x 22.8 x 1.73
(W x D X H)
Single console/
Console W/ KVM
590 x 808 x 140mm
23.2 x 31.8 x 5.5 inch
Single console10.8 kg / 23.8 lb
Console W/ KVM11.6 kg / 25.5 lb
Single console15.8kg / 34.8 lb
Console W/ KVM17.5 kg / 38.5 lb
Operating temp.0 to 55°C degree
Strorage temp-20 to 60°C degree
Operating humidity20~90%, non-condensing
Storage humidity5 ~90%, non-condensing
Operating alttiude16,000 ft
Non-operating attude40,000 ft
Shock10G acceleration (11ms duration)
Vibration10~300Hz .5G RMS randon vibration
Mounting Distance
Single console drawer NA
Console W/ KVM drawer

541mm ~ 800
21.3 ~ 31.5 inch

EMCFCC & CE certifiled
SafetyCE/ LVD certified
EnvironmentRoHS2 & REACH compliant
