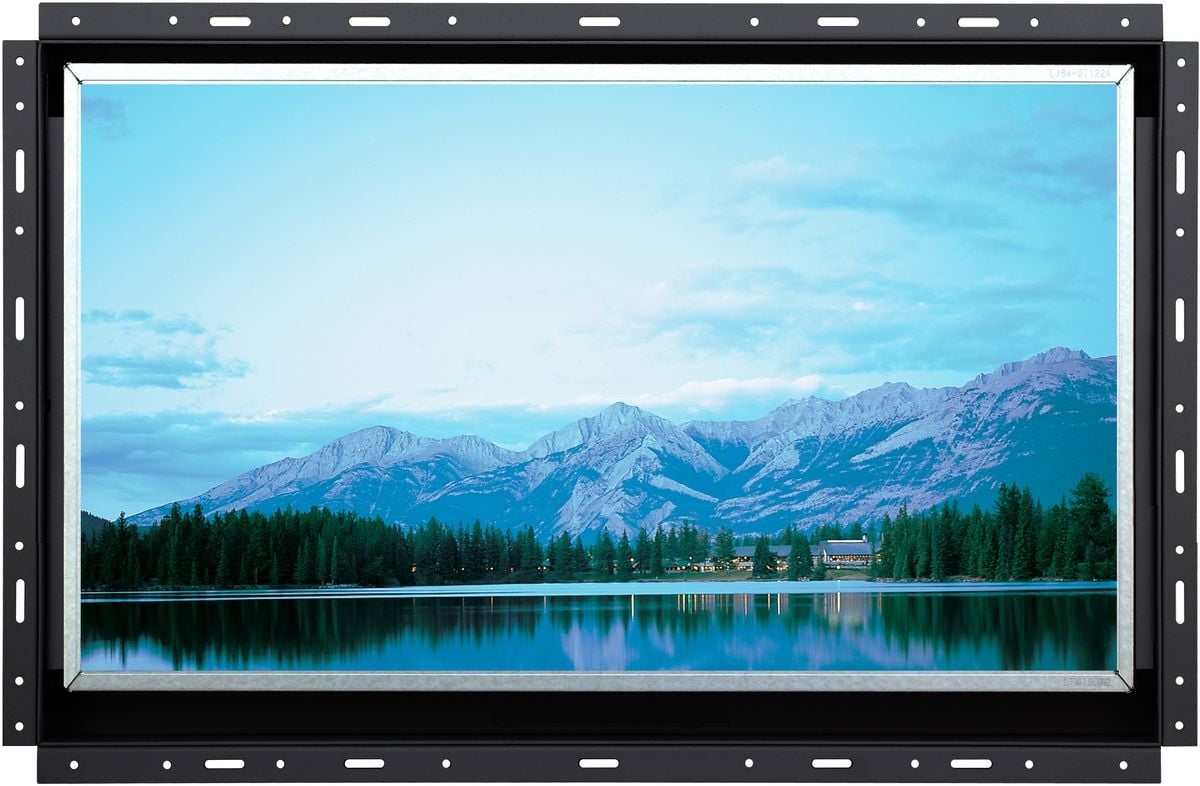

15" Industrial LCD Panel 1920 X 1080 Open Frame (Part# LCD-OP-F15)


  • VGA & DVI-D Input - Optional BNC & S-Video + Audio + HDMI

  • 3MM Protective Glass - Optional NEMA4/IP65 LED Display Panel

  • Optional - Resistive or 10 Point MultTouch Capacitive Touchscreen

  • Auto-sensing 100 to 240 VAC, 50/60Hz - Optional 12VDC / 24VDC / 48VDC / 125VDC



Regular Price: $859.00

Special Price $789.00

* Required Fields

Description

Details

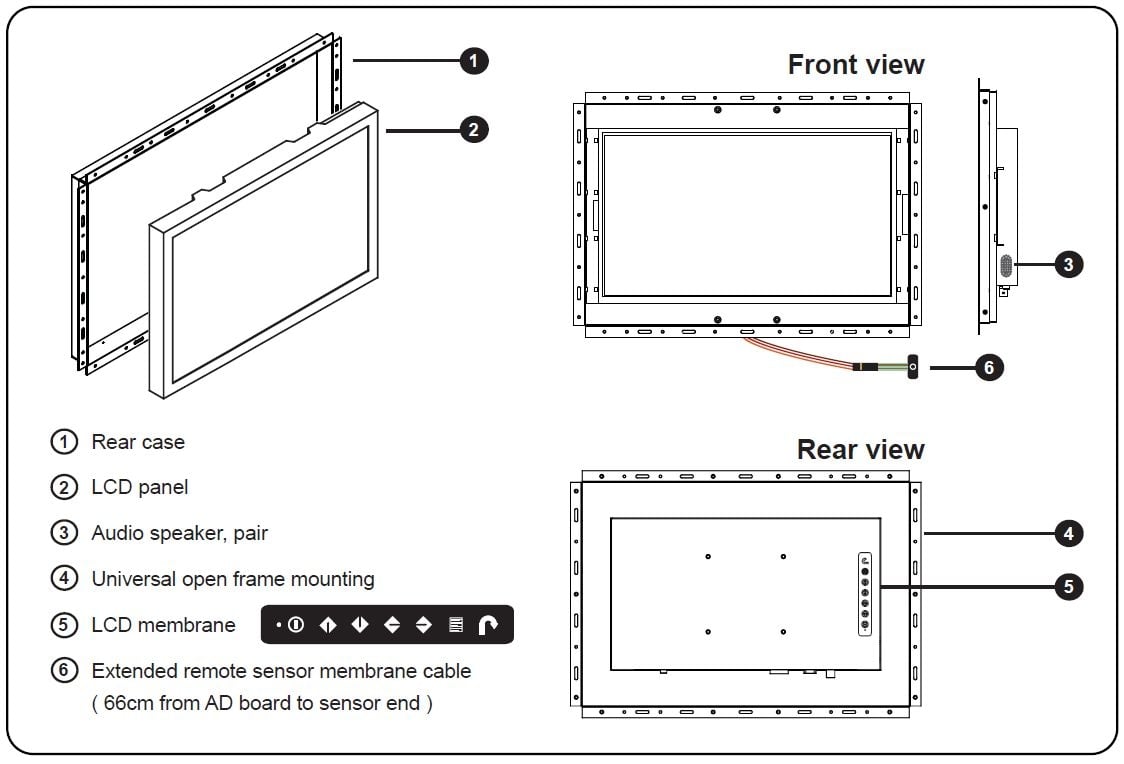

15" 1920 X 1080 Open Frame Industrial LCD Panel Features
Open Frame LCD Panel 15" Options -
  • Video:        VGA + HDMI + BNC & S-Video + Audio + Remote Controller / SDI Input
  • Touchscreen:       Resistive Touchscreen
  • Tuner:               TV - PAL or NTSC Remote Controller




Reviews

Write Your Own Review

You're reviewing: 15" Industrial LCD Panel 1920 X 1080 Open Frame (Part# LCD-OP-F15)

Tags

Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Product Specification

LCD Panel Video Specs
Video input VGA + DVI-D single link
Video Option
 Digital / Analog  HDMI / SDI / Composite

HDMI 1.3 / HDCP 1.1
3G / HD / SD-SDI Broadcast Grade Input
S-Video (4-pin) + Composite (BNC)
NTSC & PAL

LCD Panel
Panel Size (diagonal) 15.6"
Native resolution 1920 x 1080
Brightness(cd/m²) 400
Contrast ratio (typ.) 700:1
Max Color 16.7 M, 8-bit
Contrast angle(L/R/U/D) 80/80/70/70
Responsive time(ms) 16
Dot pitch (mm) 0.17925
Display area (mm) 344.16H C 193.59V
Surface treatment Anti- glare. Hard-coating
Surface hardness 3H
Backlight type LED
MTBF(hrs) 50,000
Power
Input Input Auto-sensing 100 to 240 VAC, 50/60Hz
Consumption
(console / K/M)
Screen on Max. 29W
Power saving mode Max. 6W
Power button on Max. 2W

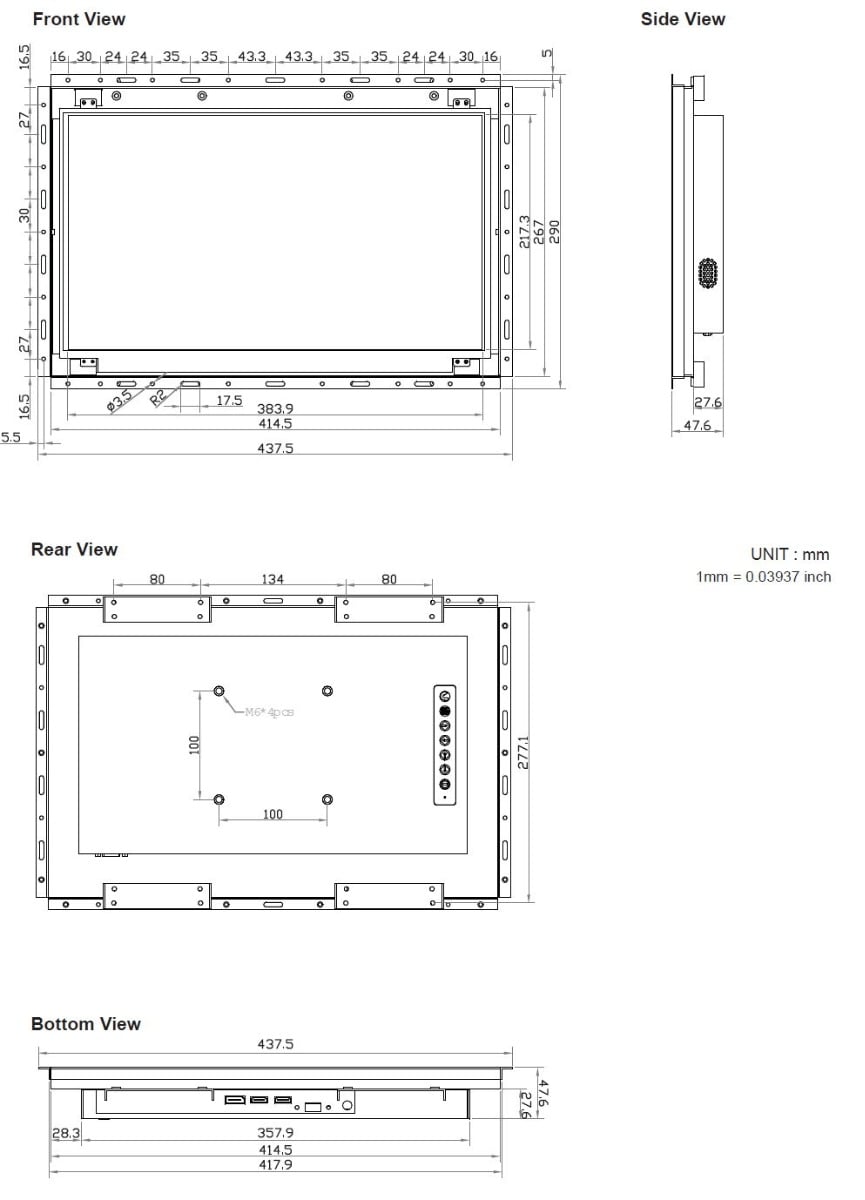

Physical
 Product
 (W x D X H)
Millimeters 399 x 53.1 x 261.6mm
Inches 15.7 X 2.1 X 10.3 inch
 Packing
 (W x D X H)
Millimeters
Inches
615 x 113 x 523mm
24.2 x 4.4 x 20.6 inch
Net
weight
KGs 4.7 kg
LBS  10.3 lb
Gross
weight
KGs 7.3 kg
LBS 16.1 lb
Environment
Operating temp. 0 to 55°C degree
Strorage temp -20 to 60°C degree
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating alttiude 16,000 ft
Non-operating attude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz .5G RMS randon vibration
Compliance
EMC FCC & CE certifiled
Safety CE/ LVD certified
Environment RoHS2 & REACH compliant
